SKU: NKIS60-EU

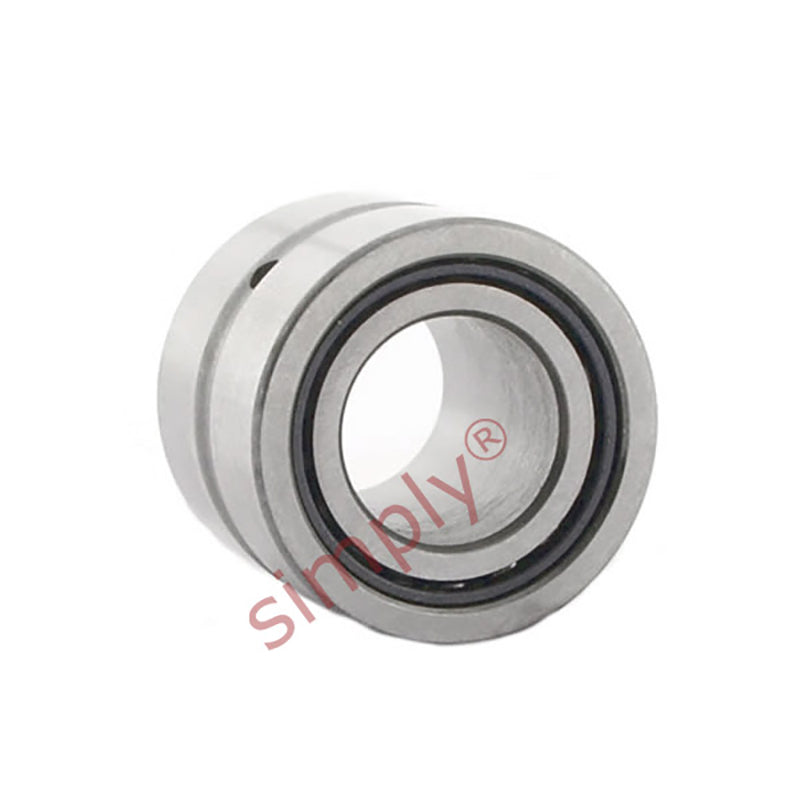

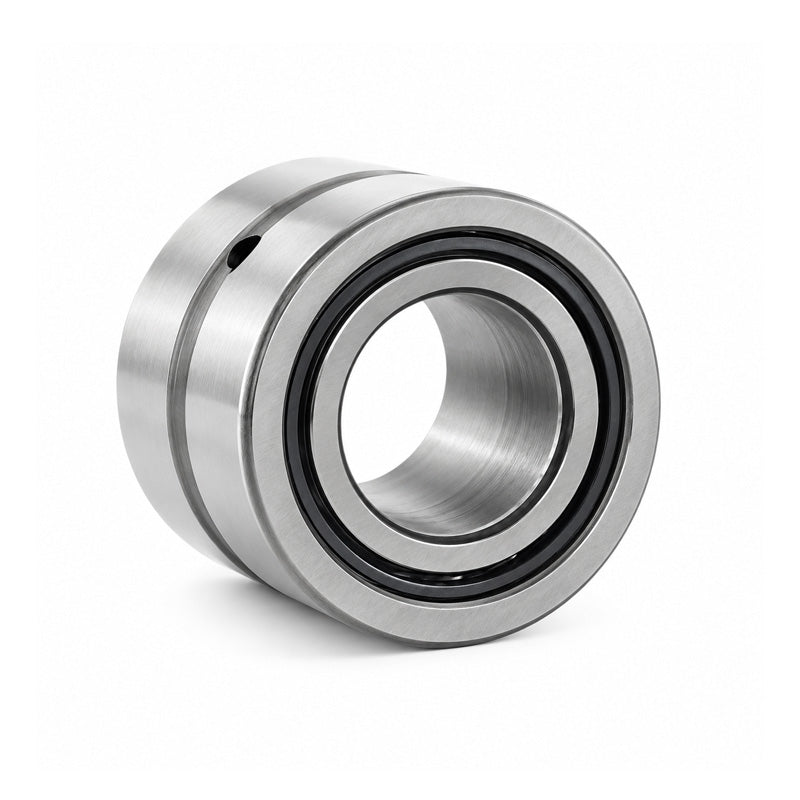

NKIS60 Budget Needle Roller Bearing / Shaft Sleeve 60x90x28mm
NKIS60 Budget Needle Roller Bearing / Shaft Sleeve 60x90x28mm
Regular price
$132.28
ex VAT
Regular price
Sale price
$132.28
ex VAT
In stock
Price Break
10+
$117.73
19+
$111.12
29+
$109.79
39+
$108.47
49+
$107.15
74+
$105.82
99+
$99.21
199+
$97.89
249+
$96.56
499+
$95.24
999+
$92.60
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Width:
- 28mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 90mm |
| B | 28mm |
| Dynamic load C | 68200 N |
| Static load Co | 120000 N |
| Fatigue load limit Pu | 15600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 70mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 66.5mm |
| Da max | 83.5mm |
| ra max | 1mm |
