SKU: NKIS55-EU

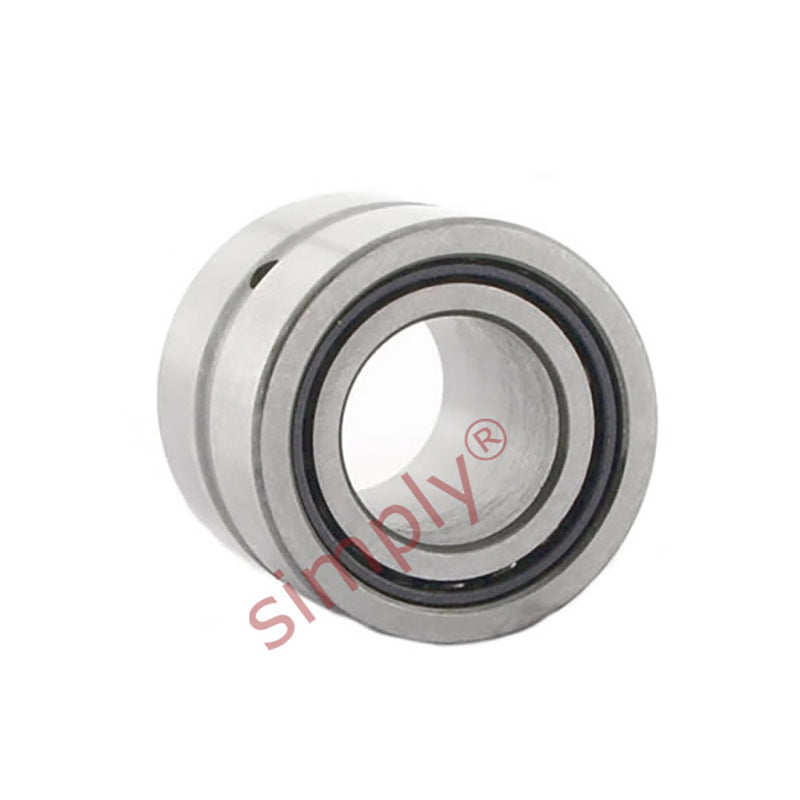

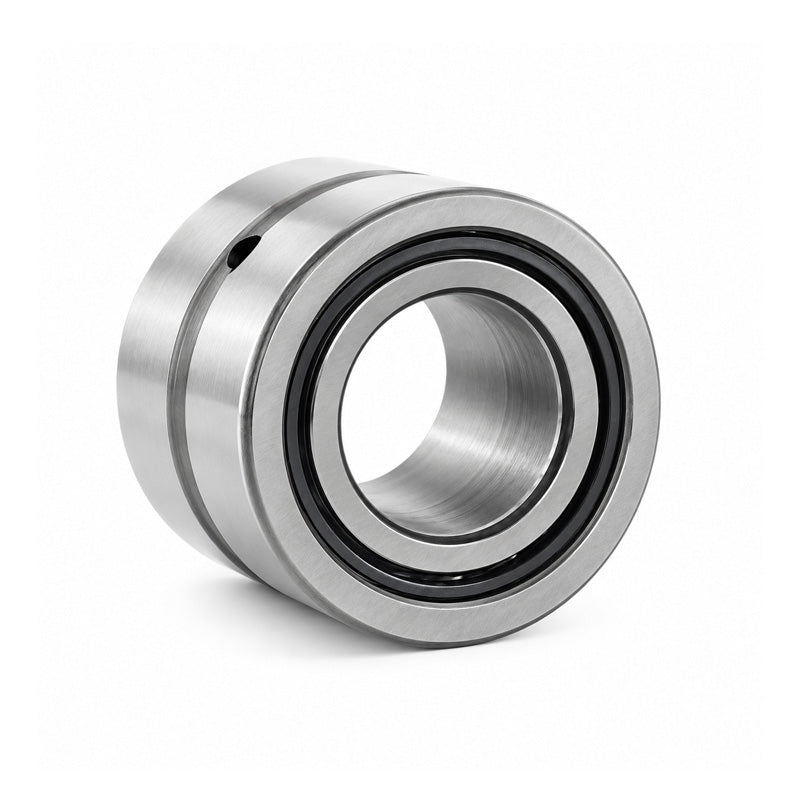

NKIS55 Budget Needle Roller Bearing / Shaft Sleeve 55x85x28mm
NKIS55 Budget Needle Roller Bearing / Shaft Sleeve 55x85x28mm
Regular price
$36.82
ex VAT
Regular price
Sale price
$36.82
ex VAT
In stock
Price Break
10+
$17.39
19+
$16.41
29+
$16.22
39+
$16.02
49+
$15.83
74+
$15.63
99+
$14.66
199+
$14.46
249+
$14.26
499+
$14.07
999+
$13.68
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 85mm
- Width:
- 28mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 85mm |
| B | 28mm |
| Dynamic load C | 66000 N |
| Static load Co | 114000 N |
| Fatigue load limit Pu | 15000 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 65mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 61.5mm |
| Da max | 78.5mm |
| ra max | 1mm |
