SKU: NKIS50-EU

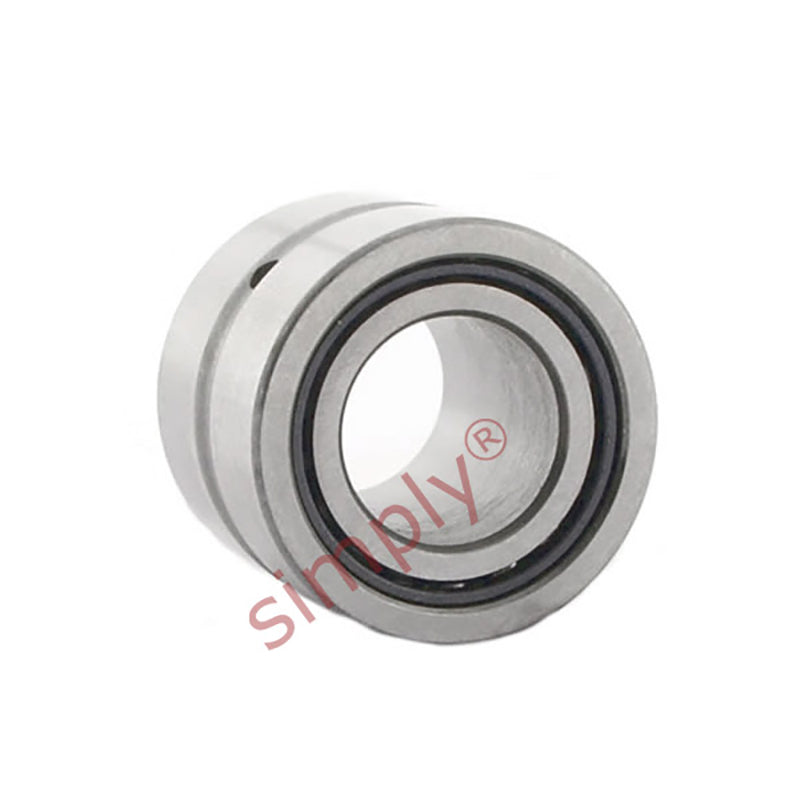

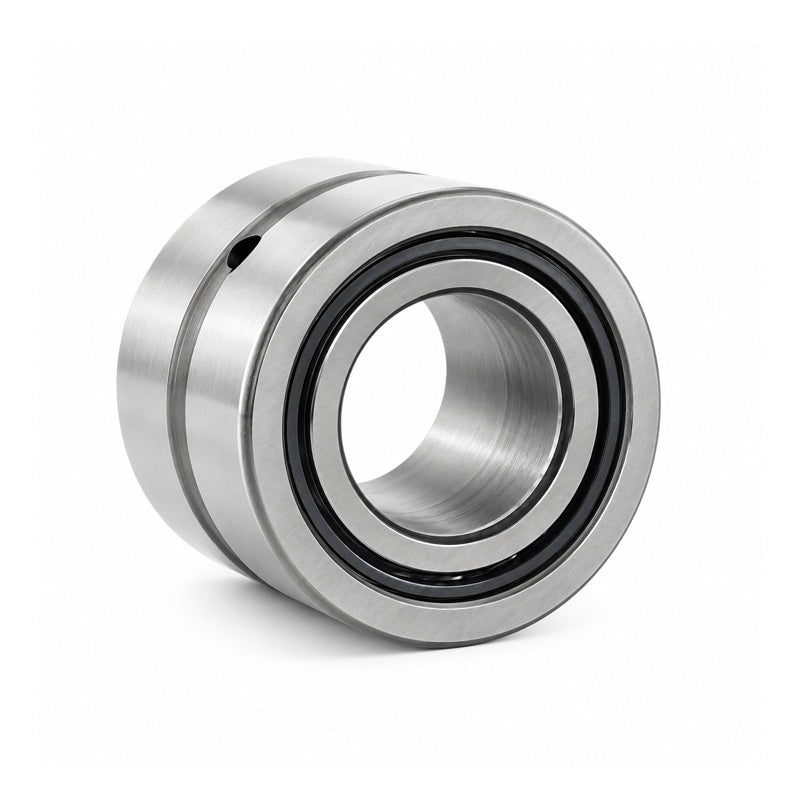

NKIS50 Budget Needle Roller Bearing / Shaft Sleeve 50x80x28mm
NKIS50 Budget Needle Roller Bearing / Shaft Sleeve 50x80x28mm
Regular price
$28.87
ex VAT
Regular price
Sale price
$28.87
ex VAT
In stock
Price Break
10+
$13.63
19+
$12.87
29+
$12.72
39+
$12.56
49+
$12.41
74+
$12.26
99+
$11.49
199+
$11.34
249+
$11.18
499+
$11.03
999+
$10.72
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 28mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 28mm |
| Dynamic load C | 62700 N |
| Static load Co | 104000 N |
| Fatigue load limit Pu | 13700 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| F | 60mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 56.5mm |
| Da max | 73.5mm |
| ra max | 1mm |
