SKU: NKIS35-MB

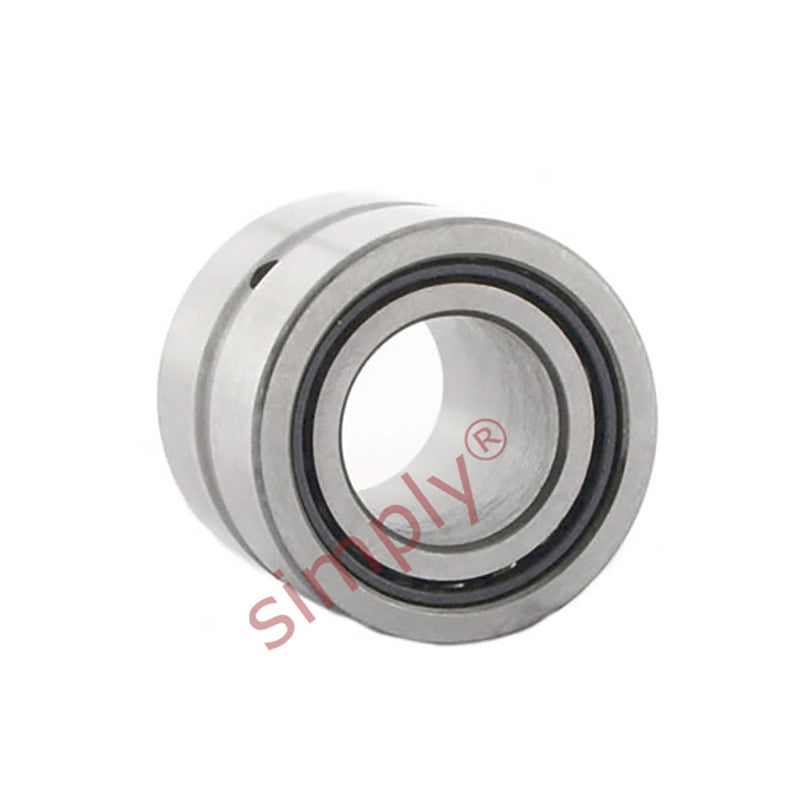

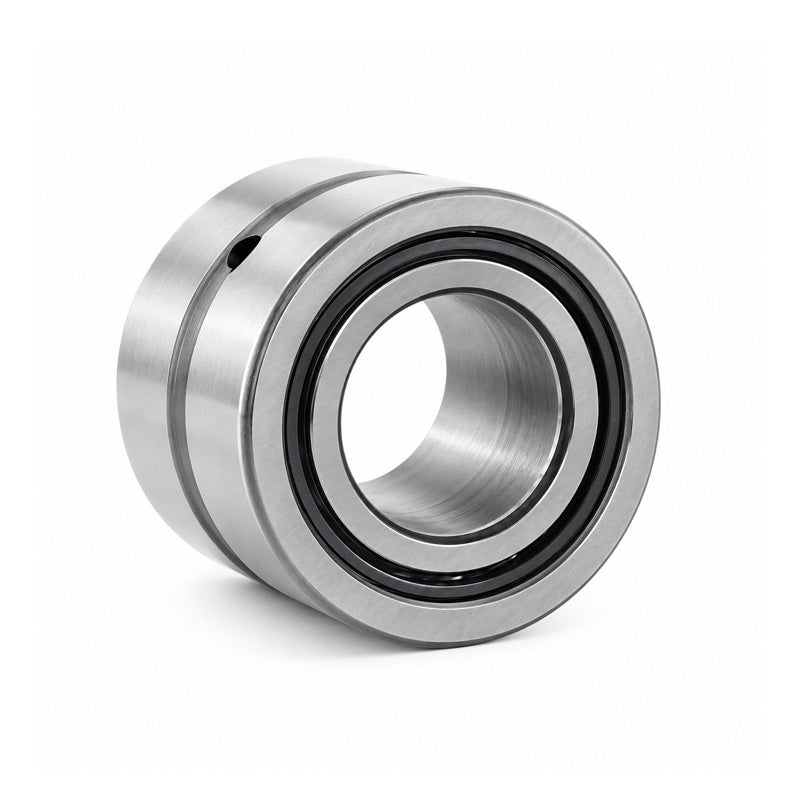

Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
Regular price
$60.23
ex VAT
Regular price
Sale price
$60.23
ex VAT
In stock
Price Break
10+
$28.44
19+
$26.85
29+
$26.53
39+
$26.21
49+
$25.89
74+
$25.57
99+
$23.97
199+
$23.65
249+
$23.33
499+
$23.01
999+
$22.37
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 58mm
- Width:
- 22mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 58mm |
| B | 22mm |
| Dynamic load | 39100 N |
| Static load | 61000 N |
| Fatigue load limit Pu | 7800 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| F | 43mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 39mm |
| Da max | 54mm |
| ra max | 0.6mm |
