SKU: NKIS25-EU

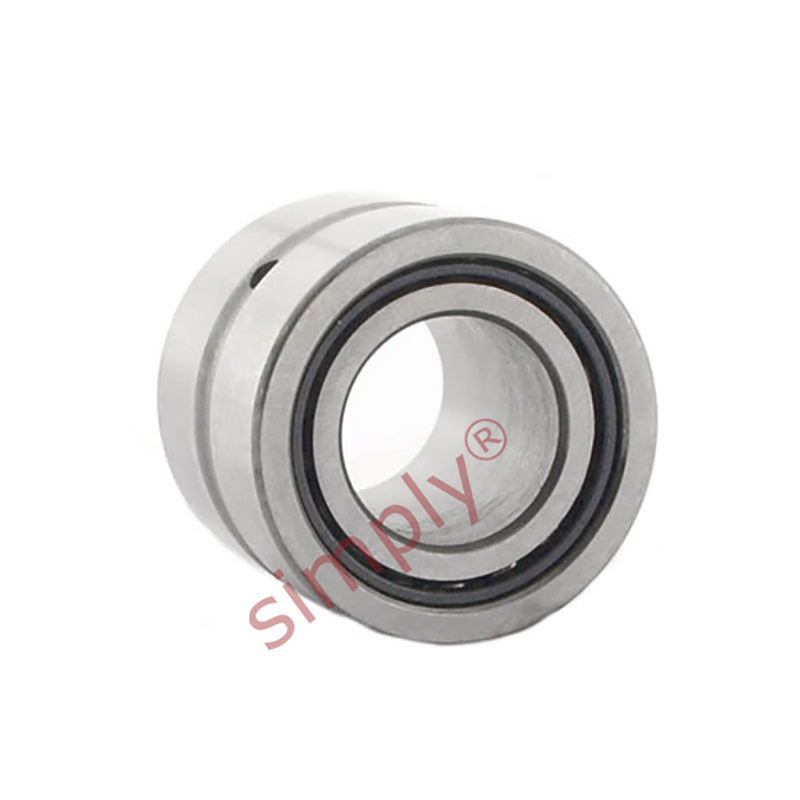

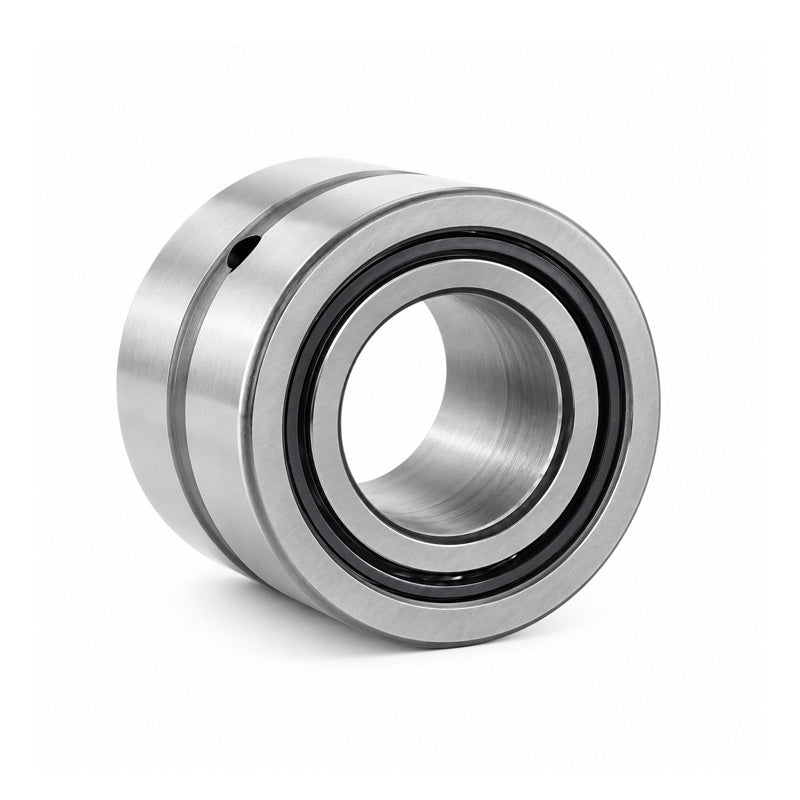

NKIS25 Budget Needle Roller Bearing / Shaft Sleeve 25x47x22mm
NKIS25 Budget Needle Roller Bearing / Shaft Sleeve 25x47x22mm
Regular price
$29.49
ex VAT
Regular price
Sale price
$29.49
ex VAT
In stock
Price Break
10+
$26.25
19+
$24.77
29+
$24.48
39+
$24.18
49+
$23.89
74+
$23.59
99+
$22.12
199+
$21.82
249+
$21.53
499+
$21.23
999+
$20.64
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 22mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 22mm |
| Dynamic load C | 34100 N |
| Static load Co | 46500 N |
| Fatigue load limit Pu | 6000 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| F | 32mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 29mm |
| Da max | 43mm |
| ra max | 0.6mm |
