SKU: NKIS17-EU

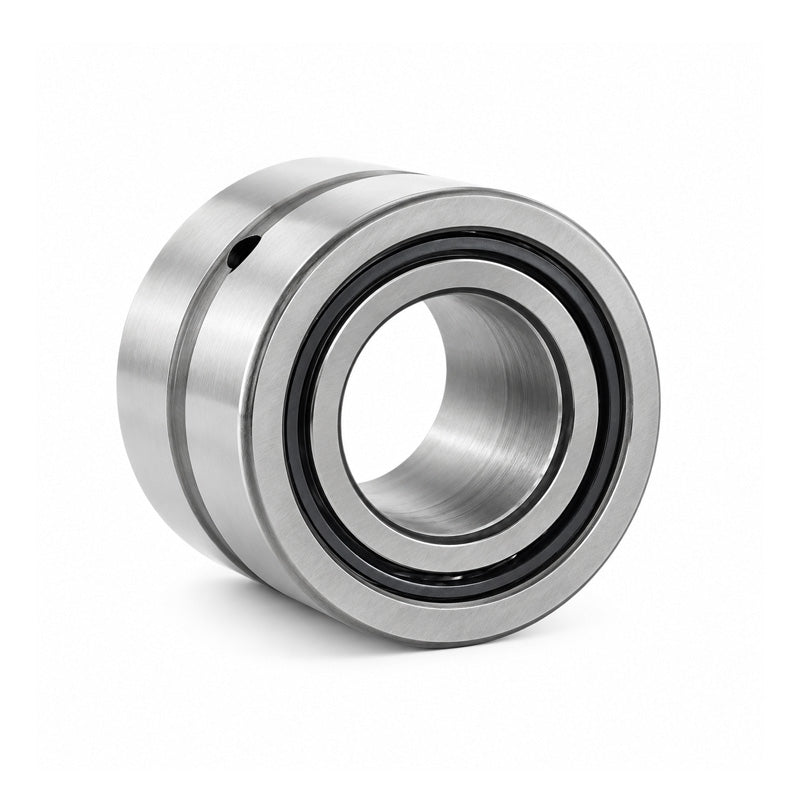

NKIS17 Budget Needle Roller Bearing / Shaft Sleeve 17x37x20mm
NKIS17 Budget Needle Roller Bearing / Shaft Sleeve 17x37x20mm
Regular price
$15.23
ex VAT
Regular price
Sale price
$15.23
ex VAT
In stock
Price Break
10+
$7.19
19+
$6.79
29+
$6.71
39+
$6.63
49+
$6.54
74+
$6.46
99+
$6.06
199+
$5.98
249+
$5.90
499+
$5.82
999+
$5.66
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 37mm |
| B | 20mm |
| Dynamic load C | 26000 N |
| Static load Co | 33500 N |
| Fatigue load limit Pu | 4250 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 24mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 21mm |
| Da max | 33mm |
| ra max | 0.6mm |
