SKU: NKIB5913-EU

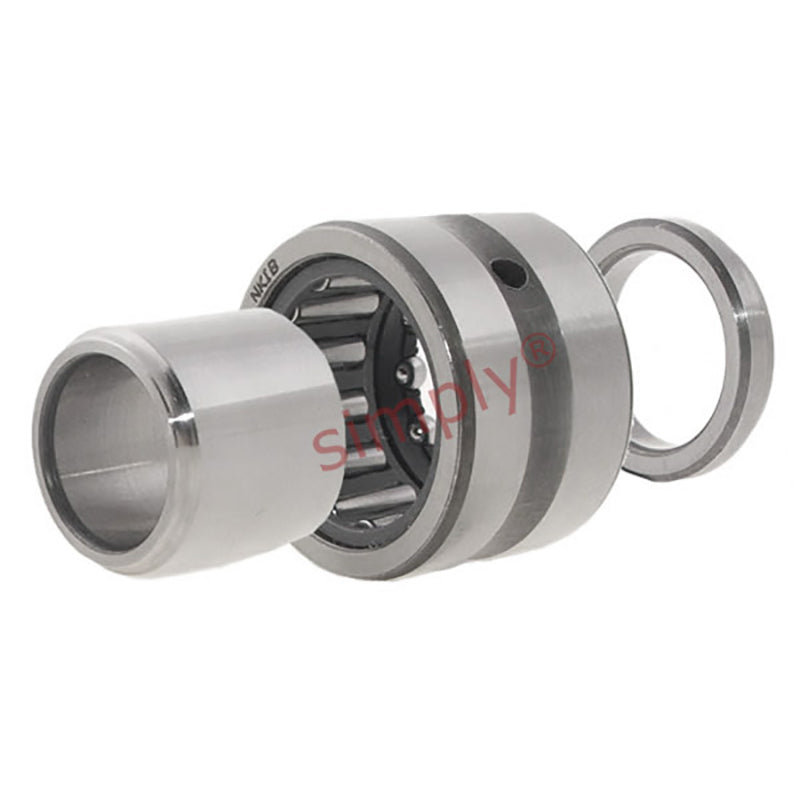

NKIB5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x38mm
NKIB5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x38mm
Regular price
$159.44
ex VAT
Regular price
Sale price
$159.44
ex VAT
In stock
Price Break
10+
$141.90
19+
$133.93
29+
$132.34
39+
$130.74
49+
$129.15
74+
$127.55
99+
$119.58
199+
$117.99
249+
$116.39
499+
$114.80
999+
$111.61
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 38mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 60500 N |
| Radial static load | 118000 N |
| Axial dynamic load | 9960 N |
| Axial static load | 19200 N |
| Fatigue load limit radial Pu | 14600 N |
| Fatigue load limit axial Pu | 816 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
| Weight | 640 g |
