SKU: NKIB5904-EU

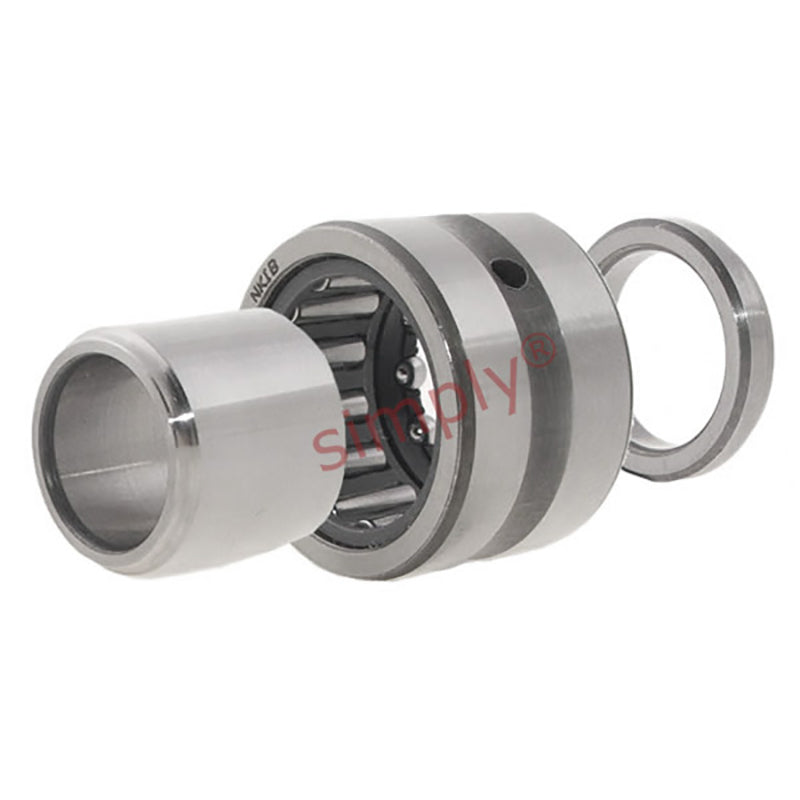

NKIB5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x25mm
NKIB5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x25mm
Regular price
$26.42
ex VAT
Regular price
Sale price
$26.42
ex VAT
In stock
Price Break
10+
$12.48
19+
$11.78
29+
$11.64
39+
$11.50
49+
$11.36
74+
$11.22
99+
$10.52
199+
$10.37
249+
$10.23
499+
$10.09
999+
$9.81
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 25mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Weight | 110 g |
