SKU: NKIA5908-EU

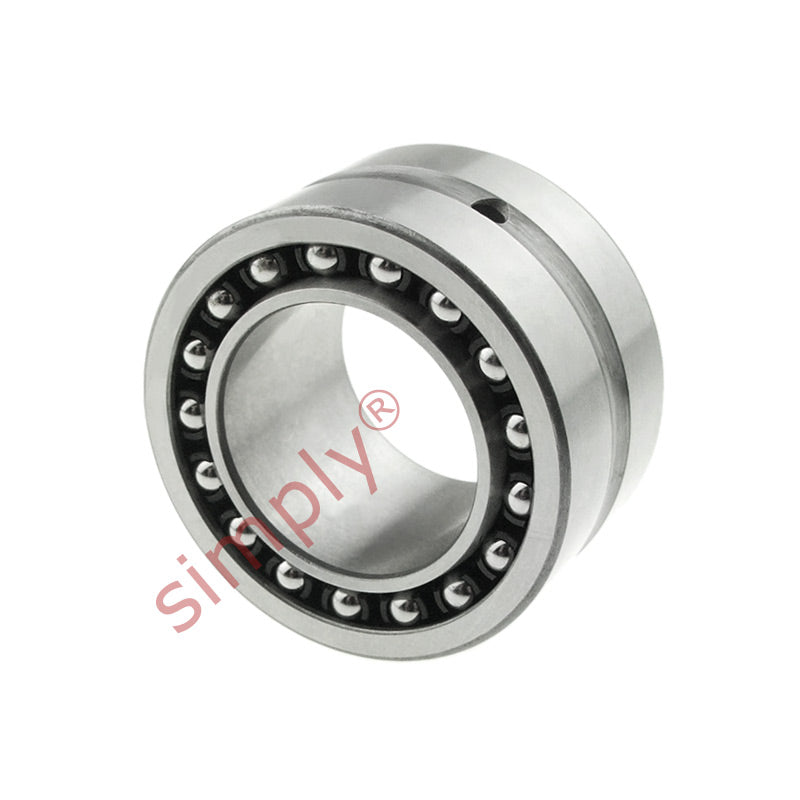

NKIA5908 Budget Needle Roller / Angular Contact Ball Bearing 40x62x30mm
NKIA5908 Budget Needle Roller / Angular Contact Ball Bearing 40x62x30mm
Regular price
$59.61
ex VAT
Regular price
Sale price
$59.61
ex VAT
In stock
Price Break
10+
$28.15
19+
$26.57
29+
$26.25
39+
$25.94
49+
$25.62
74+
$25.30
99+
$23.72
199+
$23.41
249+
$23.09
499+
$22.77
999+
$22.14
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 30mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 30mm |
| Radial dynamic load | 42900 N |
| Radial static load | 71000 N |
| Axial dynamic load | 7170 N |
| Axial static load | 10900 N |
| Fatigue load limit radial Pu | 8800 N |
| Fatigue load limit axial Pu | 467 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| F | 48mm |
| r1r2 | 0.6mm |
| da min | 44mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Weight | 320 g |
