SKU: NKIA5906-MB

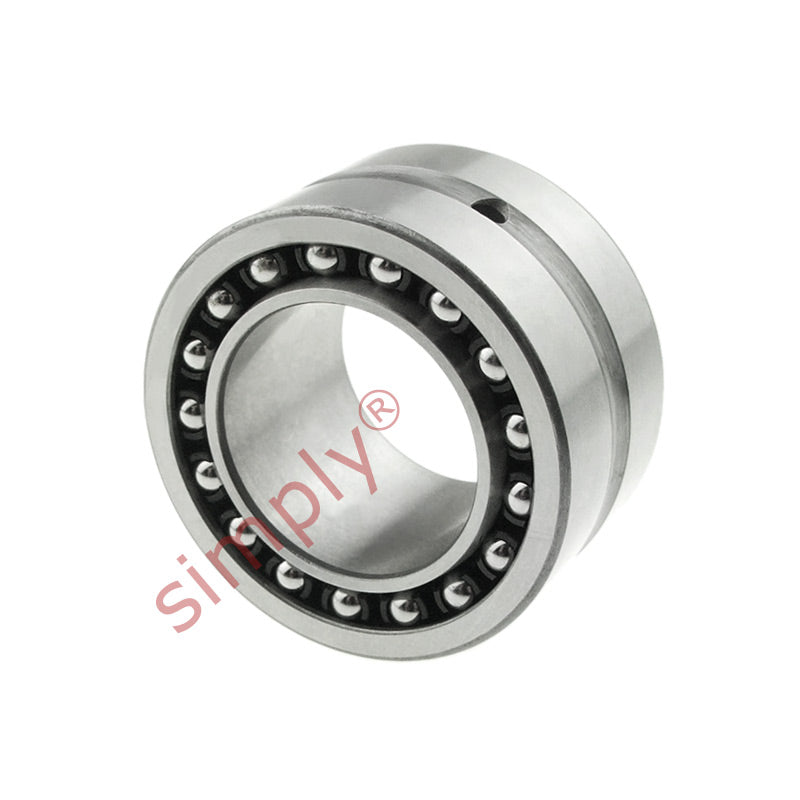

Major Brand NKIA5906 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5906 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
$87.32
ex VAT
Regular price
Sale price
$87.32
ex VAT
In stock
Price Break
10+
$77.71
19+
$73.35
29+
$72.48
39+
$71.60
49+
$70.73
74+
$69.86
99+
$65.49
199+
$64.62
249+
$63.74
499+
$62.87
999+
$61.12
Couldn't load pickup availability
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 23mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 23mm |
| Radial dynamic load | 25500 N |
| Radial static load | 39000 N |
| Axial dynamic load | 4540 N |
| Axial static load | 6320 N |
| Fatigue load limit radial Pu | 4650 N |
| Fatigue load limit axial Pu | 268 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
