SKU: NKIA5904-MB

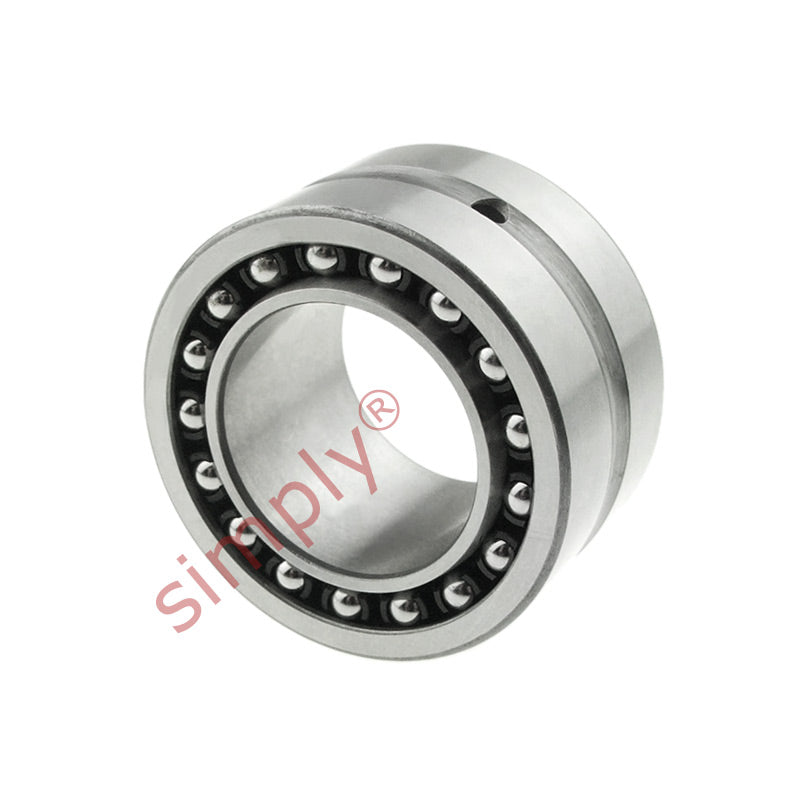

Major Brand NKIA5904 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5904 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
$39.05
ex VAT
Regular price
Sale price
$39.05
ex VAT
In stock
Price Break
10+
$18.44
19+
$17.40
29+
$17.20
39+
$16.99
49+
$16.78
74+
$16.58
99+
$15.54
199+
$15.33
249+
$15.13
499+
$14.92
999+
$14.50
Share this product
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 23mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
