SKU: NKIA5904-EU

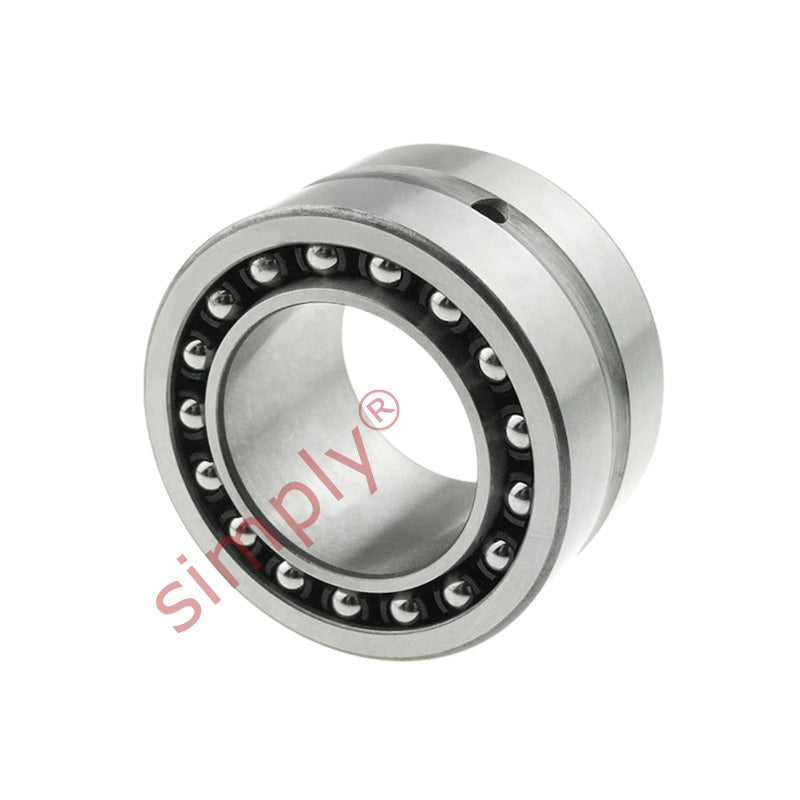

NKIA5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x23mm
NKIA5904 Budget Needle Roller / Angular Contact Ball Bearing 20x37x23mm
Regular price
$19.54
ex VAT
Regular price
Sale price
$19.54
ex VAT
In stock
Price Break
10+
$9.23
19+
$8.71
29+
$8.61
39+
$8.50
49+
$8.40
74+
$8.30
99+
$7.78
199+
$7.67
249+
$7.57
499+
$7.47
999+
$7.26
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 23mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Weight | 100 g |
