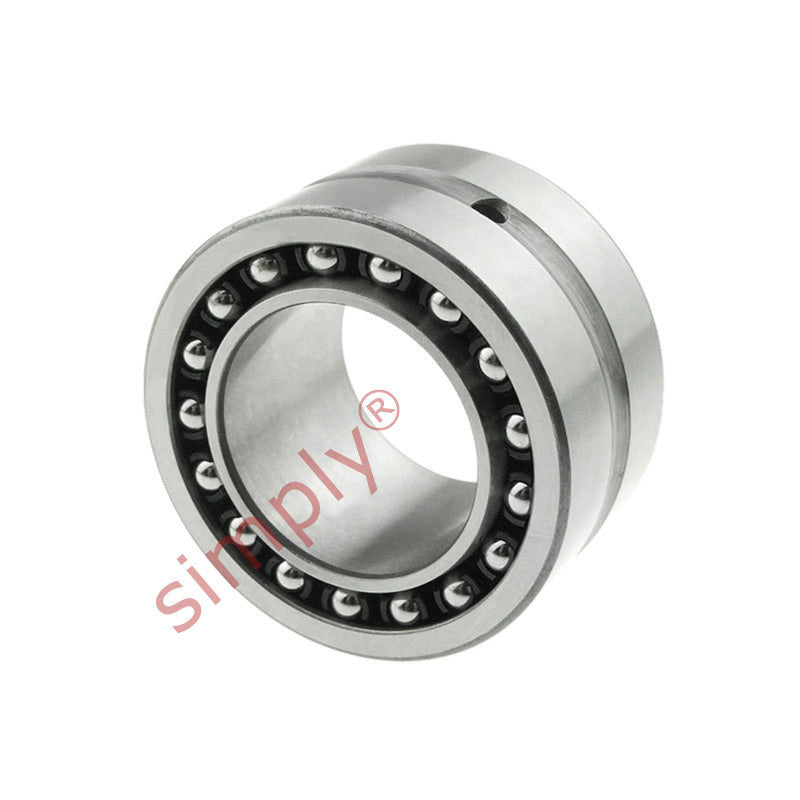

NKIA5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x18mm
NKIA5903 Budget Needle Roller / Angular Contact Ball Bearing 17x30x18mm
Regular price
$17.86
ex VAT
Regular price
Sale price
$17.86
ex VAT
In stock
Price Break
10+
$8.44
19+
$7.96
29+
$7.87
39+
$7.77
49+
$7.68
74+
$7.58
99+
$7.11
199+
$7.02
249+
$6.92
499+
$6.83
999+
$6.64
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 18mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 18mm |
| Radial dynamic load | 11700 N |
| Radial static load | 17000 N |
| Axial dynamic load | 2240 N |
| Axial static load | 2740 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 116 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| F | 22mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Weight | 56 g |
