SKU: NKI6/16TN-MB

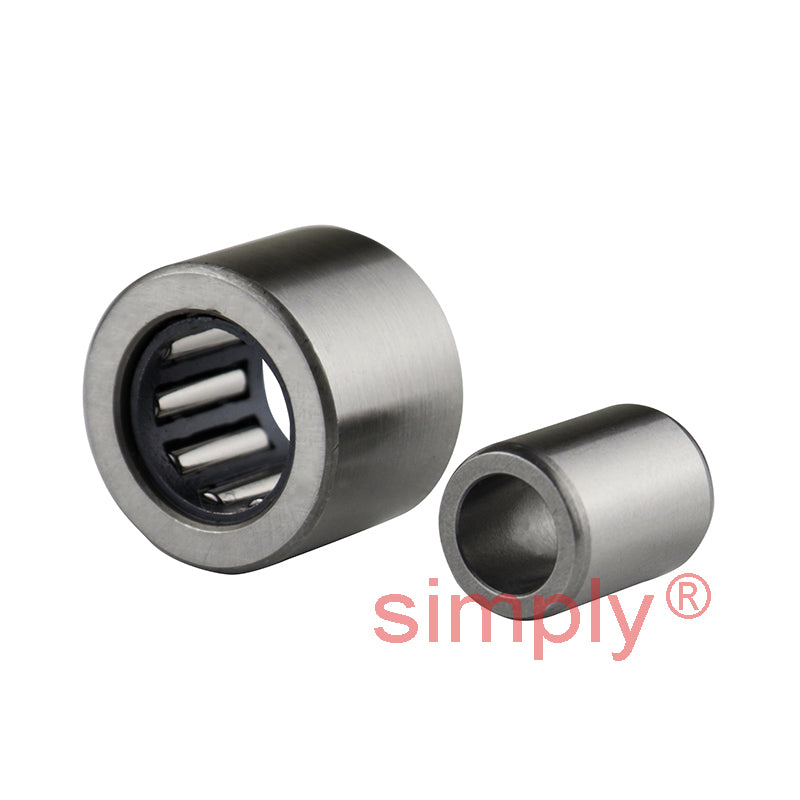

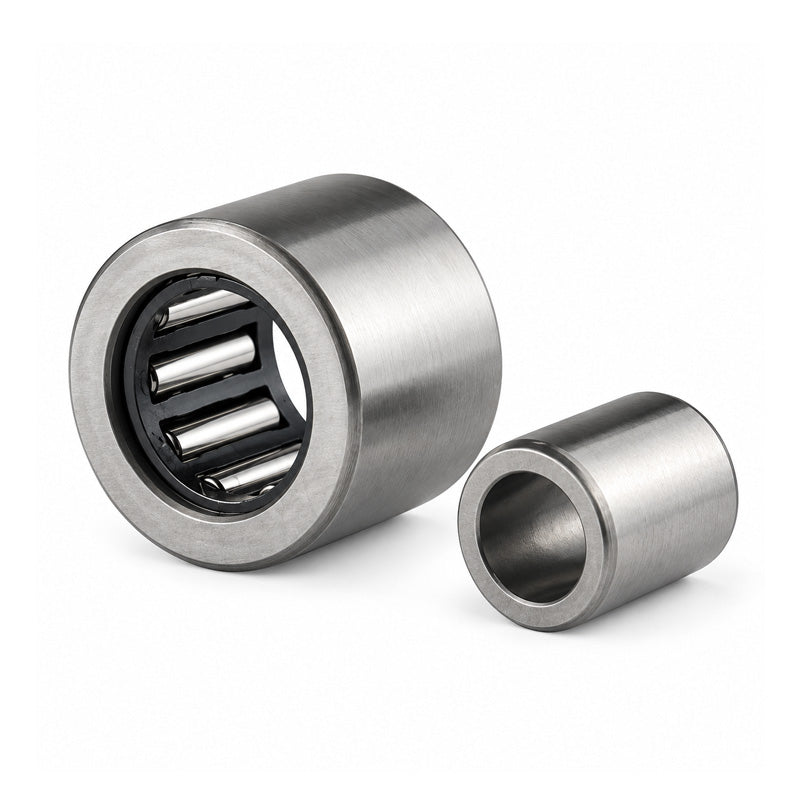

Major Brand NKI6/16TN Needle Roller Bearing With Shaft Sleeve 6x16x16mm
Major Brand NKI6/16TN Needle Roller Bearing With Shaft Sleeve 6x16x16mm
Regular price
$17.02
ex VAT
Regular price
Sale price
$17.02
ex VAT
In stock
Price Break
10+
$8.04
19+
$7.59
29+
$7.49
39+
$7.40
49+
$7.31
74+
$7.22
99+
$6.77
199+
$6.68
249+
$6.59
499+
$6.50
999+
$6.32
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 16mm
- Width:
- 16mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 16mm |
| B | 16mm |
| Dynamic load | 5720 N |
| Static load | 7200 N |
| Fatigue load limit Pu | 815 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| F | 9mm |
| r1r2 | 0.3mm |
| S (axial disp) | 2mm |
| da min | 8mm |
| Da max | 14mm |
| ra max | 0.3mm |
