SKU: NKI42/30-EU

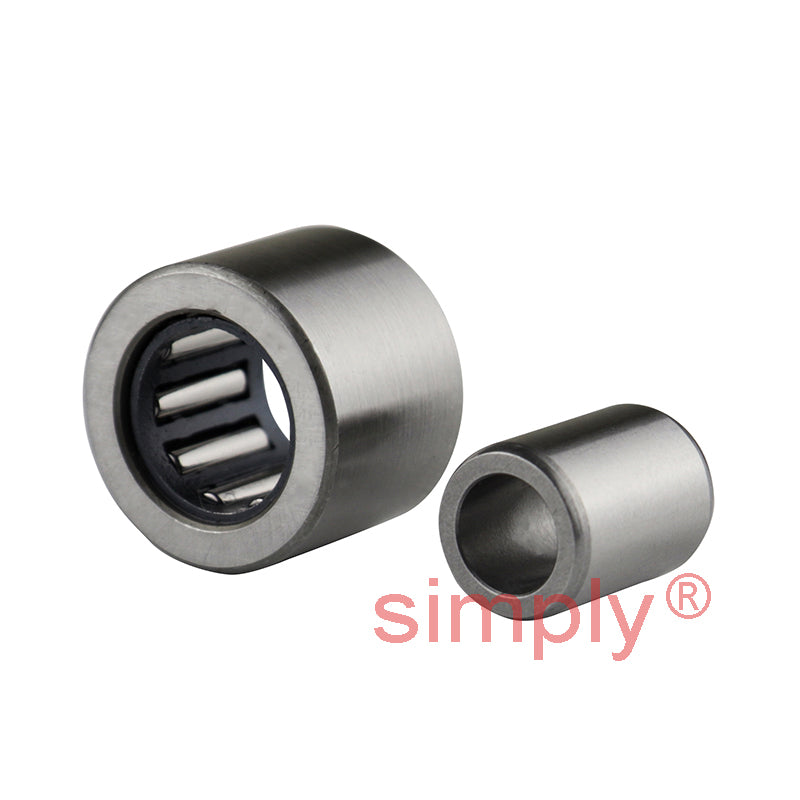

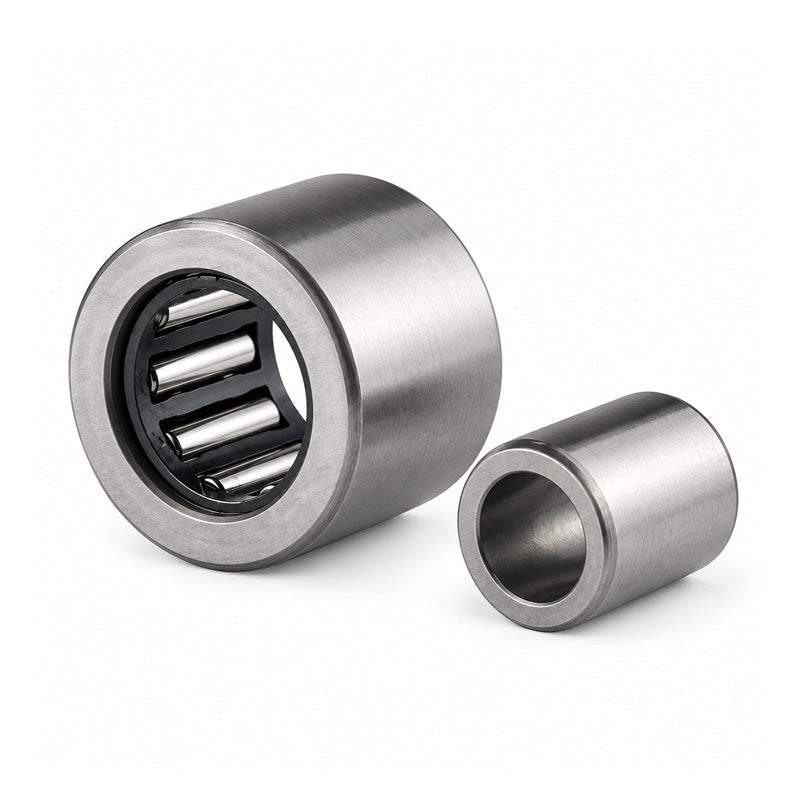

NKI42/30 Budget Needle Roller Bearing / Shaft Sleeve 42x57x30mm
NKI42/30 Budget Needle Roller Bearing / Shaft Sleeve 42x57x30mm
Regular price
$18.11
ex VAT
Regular price
Sale price
$18.11
ex VAT
In stock
Price Break
10+
$16.12
19+
$15.21
29+
$15.03
39+
$14.85
49+
$14.67
74+
$14.49
99+
$13.58
199+
$13.40
249+
$13.22
499+
$13.04
999+
$12.68
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 57mm
- Width:
- 30mm
Technical
Technical
| d | 42mm |
|---|---|
| D | 57mm |
| B | 30mm |
| Dynamic load C | 41800 N |
| Static load Co | 98000 N |
| Fatigue load limit Pu | 12900 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| F | 47mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 44mm |
| Da max | 55mm |
| ra max | 0.3mm |
