SKU: NKI35/20-EU

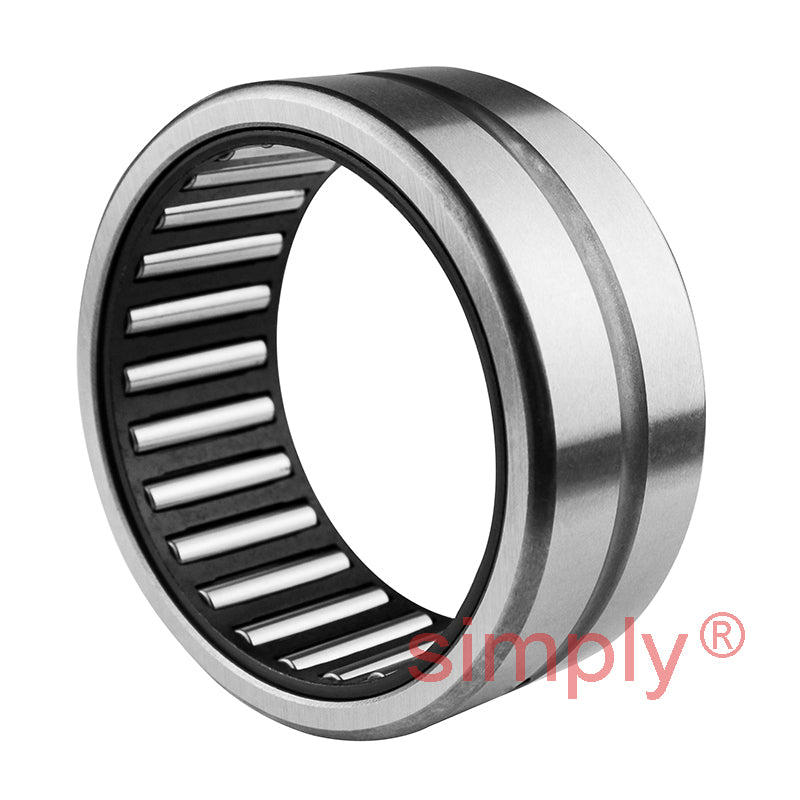

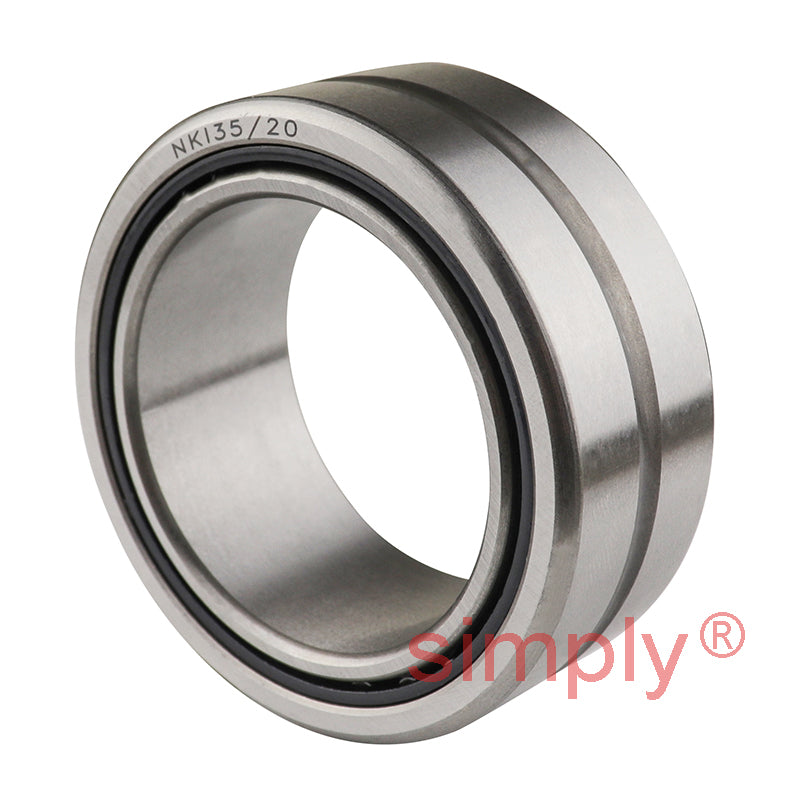

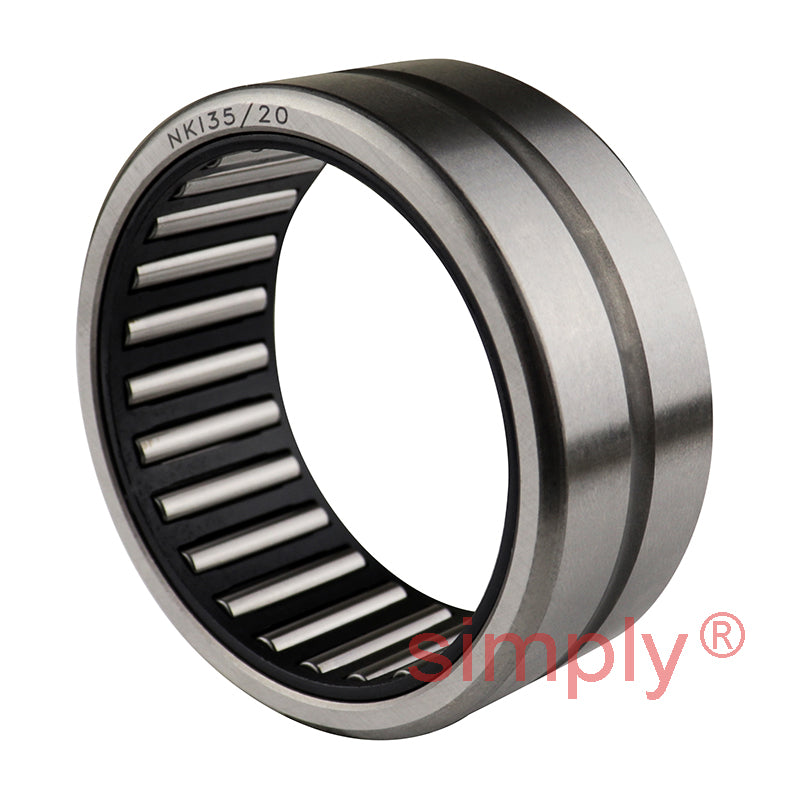

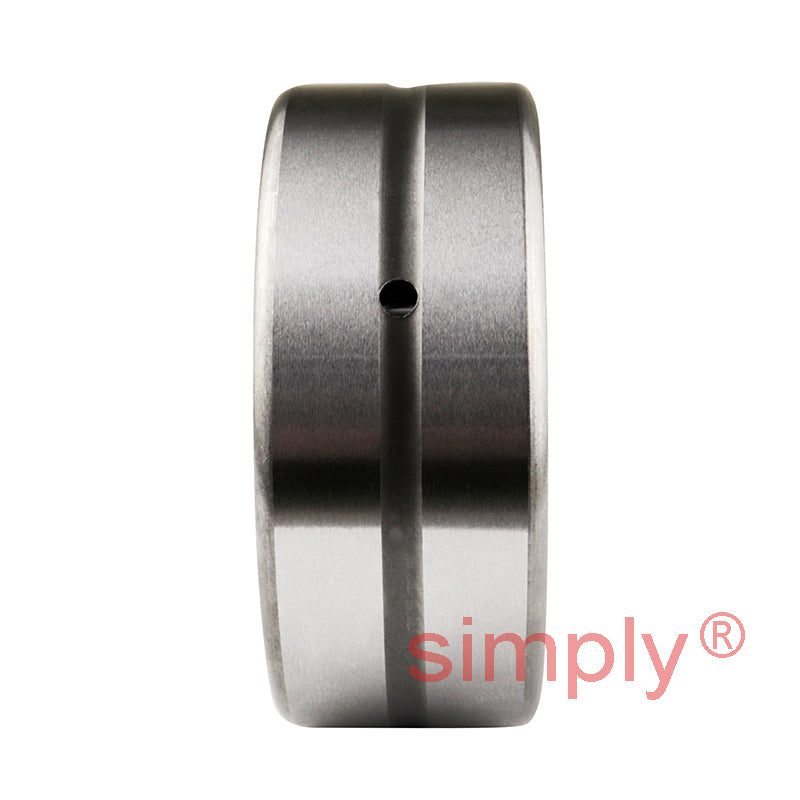

NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
Regular price
$16.77
ex VAT
Regular price
Sale price
$16.77
ex VAT
In stock
Price Break
10+
$7.92
19+
$7.48
29+
$7.39
39+
$7.30
49+
$7.21
74+
$7.12
99+
$6.68
199+
$6.59
249+
$6.50
499+
$6.41
999+
$6.23
Description
Description
|

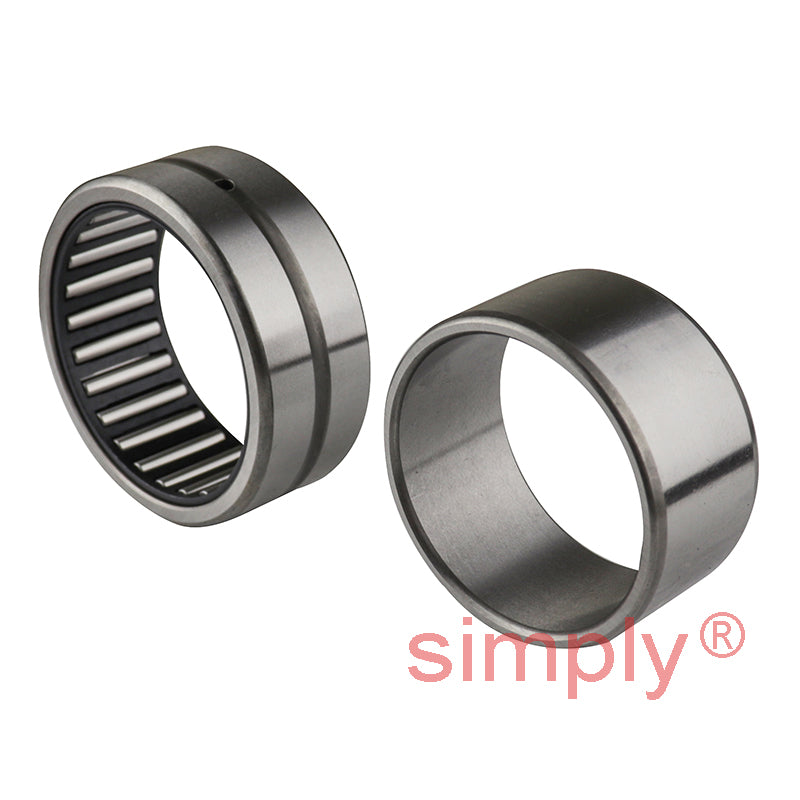

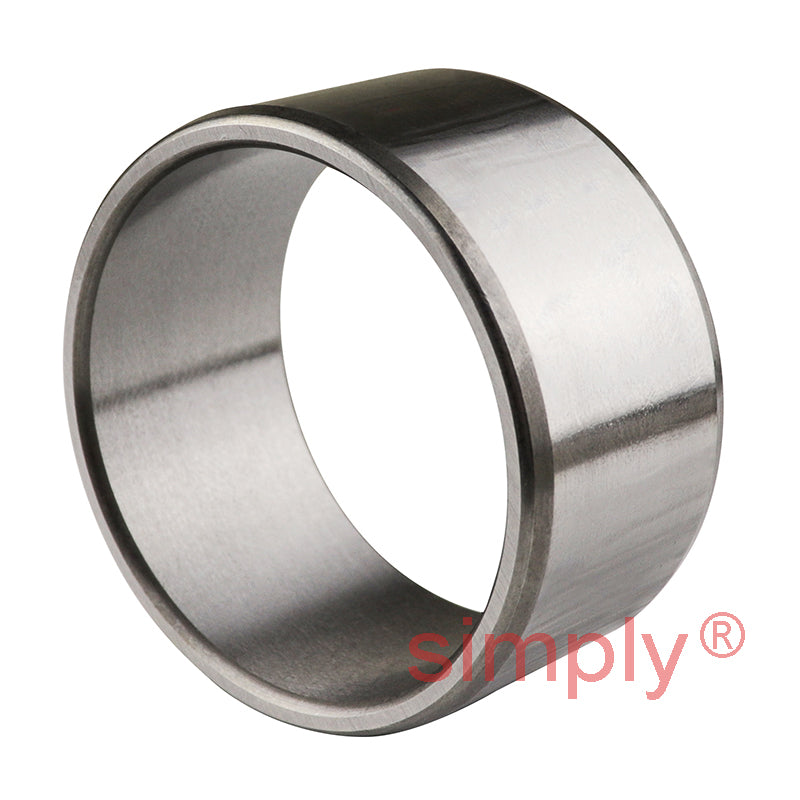

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 20mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 50mm |
| B | 20mm |
| Dynamic load C | 26400 N |
| Static load Co | 51000 N |
| Fatigue load limit Pu | 6400 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 37mm |
| Da max | 48mm |
| ra max | 0.3mm |
