SKU: NKI28/30-EU

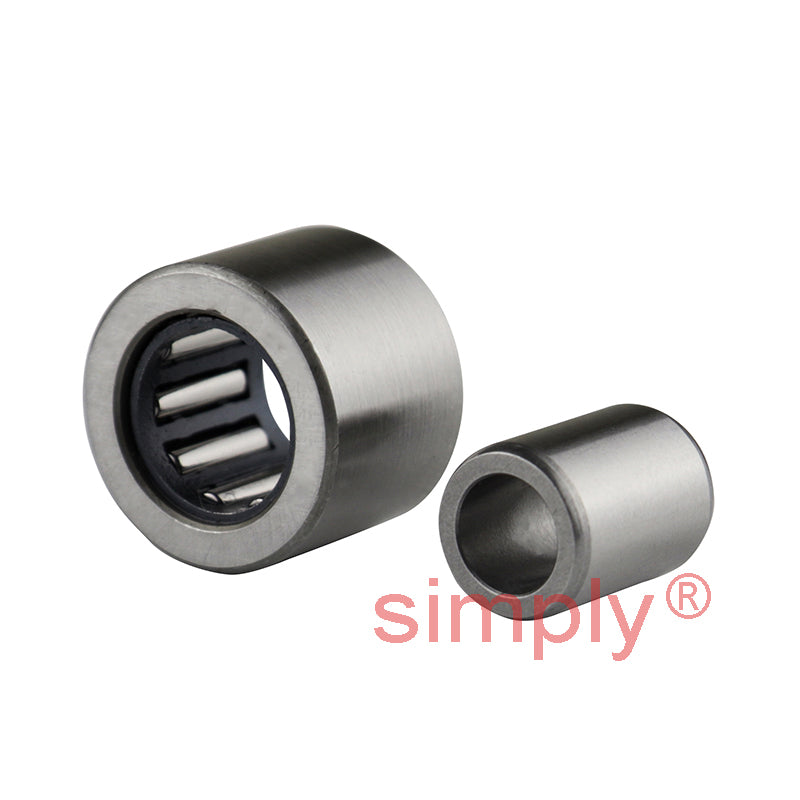

NKI28/30 Budget Needle Roller Bearing / Shaft Sleeve 28x42x30mm
NKI28/30 Budget Needle Roller Bearing / Shaft Sleeve 28x42x30mm
Regular price
$16.09
ex VAT
Regular price
Sale price
$16.09
ex VAT
In stock
Price Break
10+
$7.60
19+
$7.17
29+
$7.09
39+
$7.00
49+
$6.92
74+
$6.83
99+
$6.41
199+
$6.32
249+
$6.23
499+
$6.15
999+
$5.98
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| d | 28mm |
|---|---|
| D | 42mm |
| B | 30mm |
| Dynamic load C | 34100 N |
| Static load Co | 65500 N |
| Fatigue load limit Pu | 8650 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| F | 32mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1.5mm |
| da min | 30mm |
| Da max | 40mm |
| ra max | 0.3mm |
