SKU: NKI25/20TN-EU

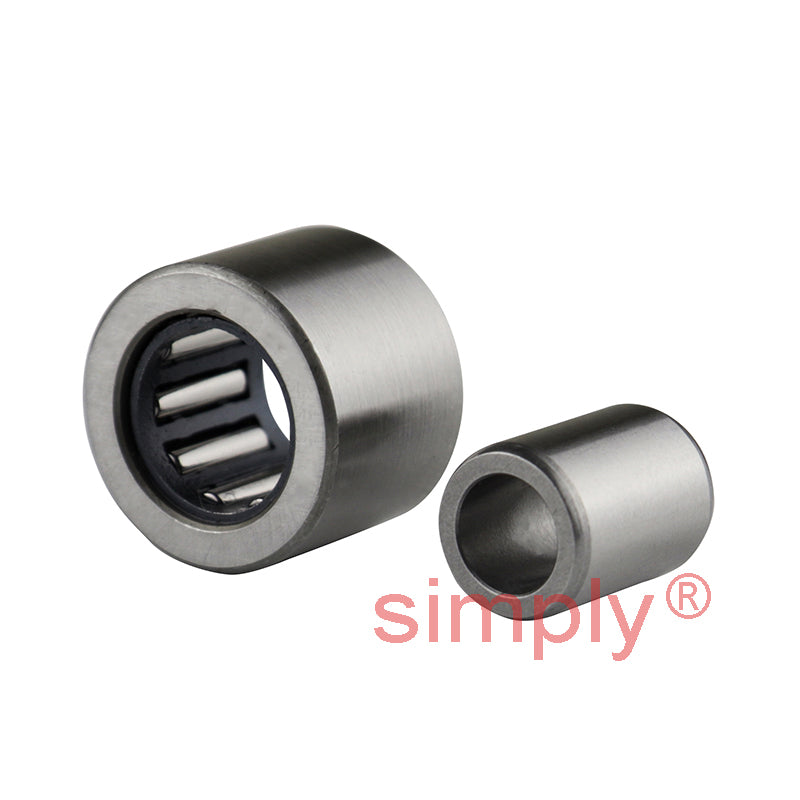

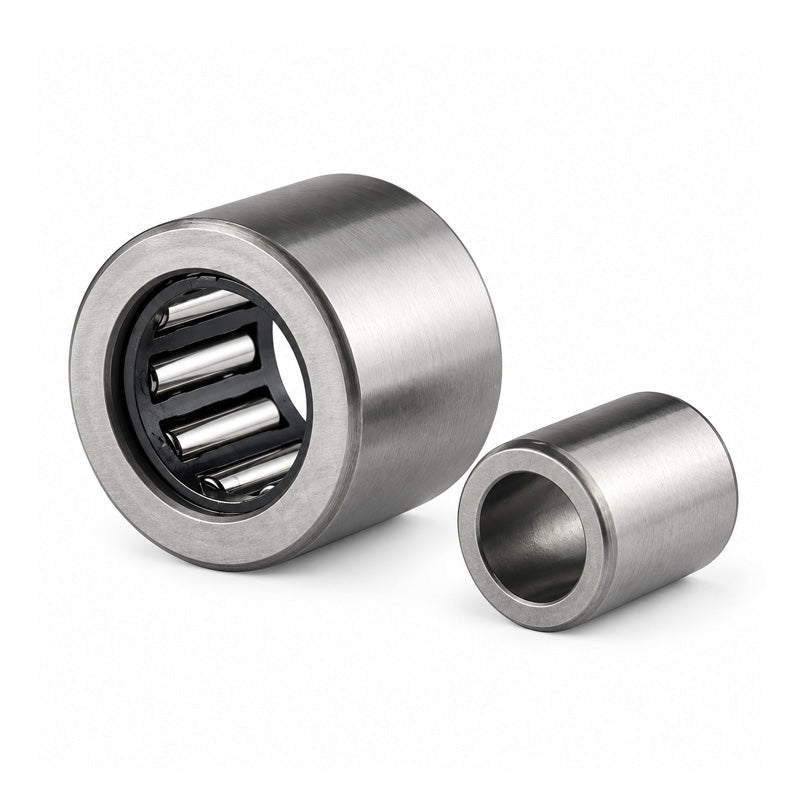

NKI25/20TN Budget Needle Roller Bearing / Shaft Sleeve 25x38x20mm
NKI25/20TN Budget Needle Roller Bearing / Shaft Sleeve 25x38x20mm
Regular price
$14.91
ex VAT
Regular price
Sale price
$14.91
ex VAT
In stock
Price Break
10+
$7.04
19+
$6.64
29+
$6.57
39+
$6.49
49+
$6.41
74+
$6.33
99+
$5.93
199+
$5.85
249+
$5.77
499+
$5.70
999+
$5.54
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 38mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 38mm |
| B | 20mm |
| Dynamic load C | 22000 N |
| Static load Co | 36500 N |
| Fatigue load limit Pu | 4650 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 29mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 27mm |
| Da max | 36mm |
| ra max | 0.3mm |
