SKU: NKI22/16-EU

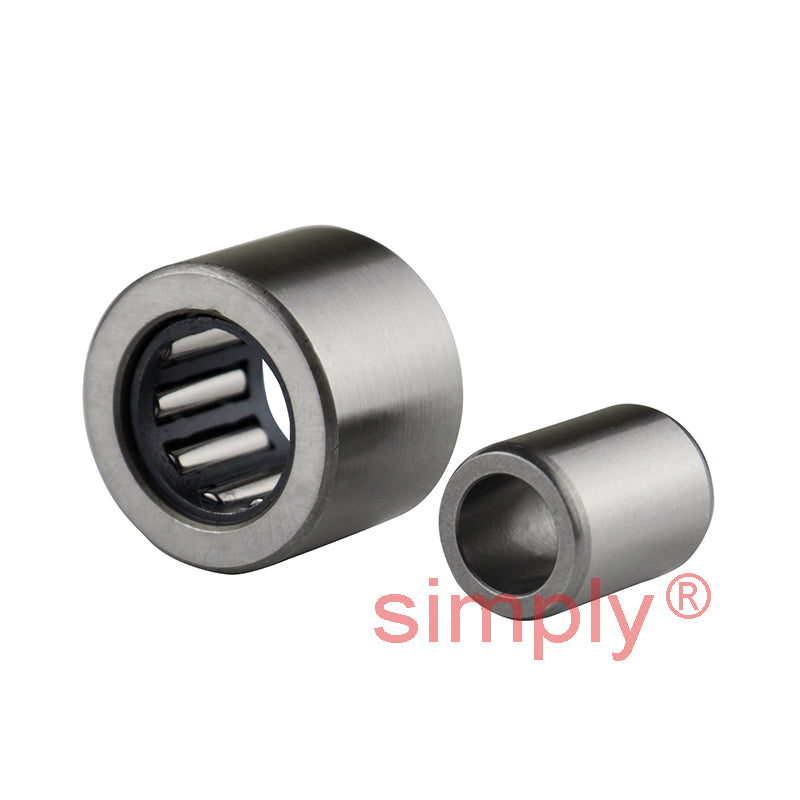

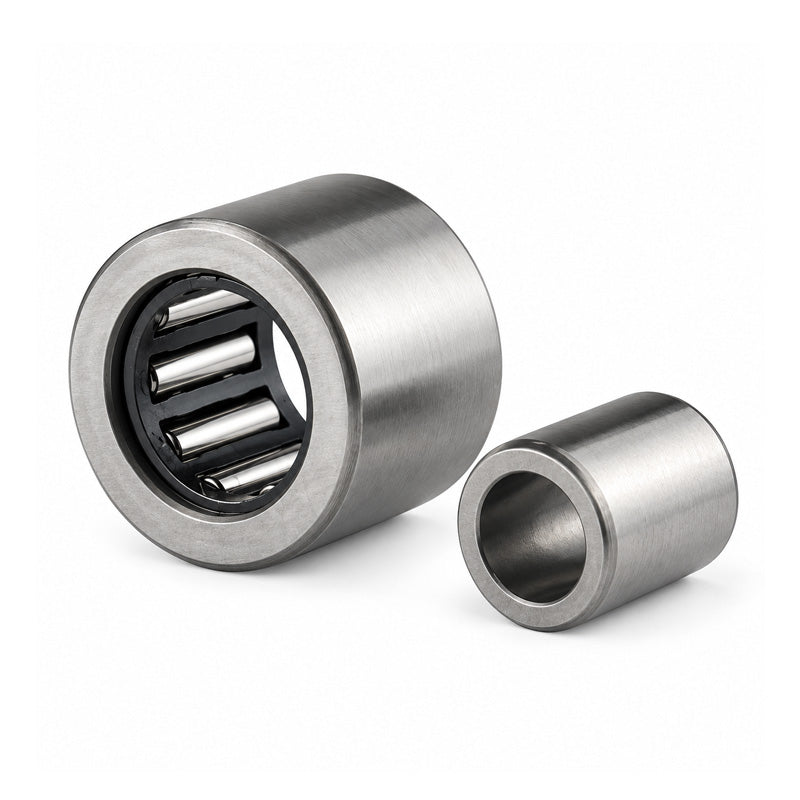

NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm
NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm
Regular price
$13.00
ex VAT
Regular price
Sale price
$13.00
ex VAT
In stock
Price Break
10+
$11.57
19+
$10.92
29+
$10.79
39+
$10.66
49+
$10.53
74+
$10.40
99+
$9.75
199+
$9.62
249+
$9.49
499+
$9.36
999+
$9.10
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 34mm
- Width:
- 16mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 34mm |
| B | 16mm |
| Dynamic load C | 15700 N |
| Static load Co | 26000 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 26mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 32mm |
| ra max | 0.3mm |
