SKU: NKI20/16-MB

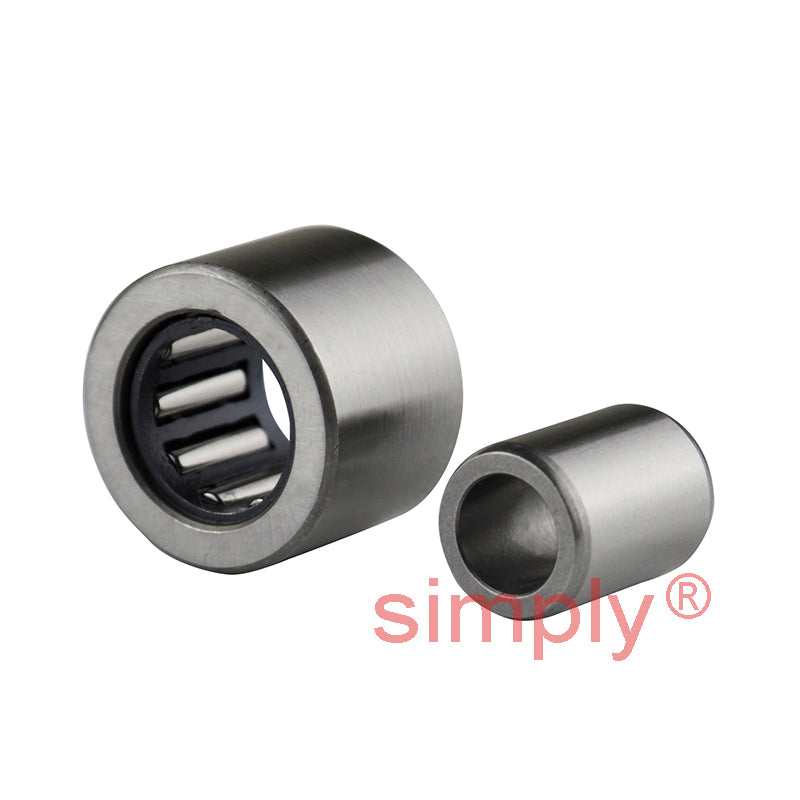

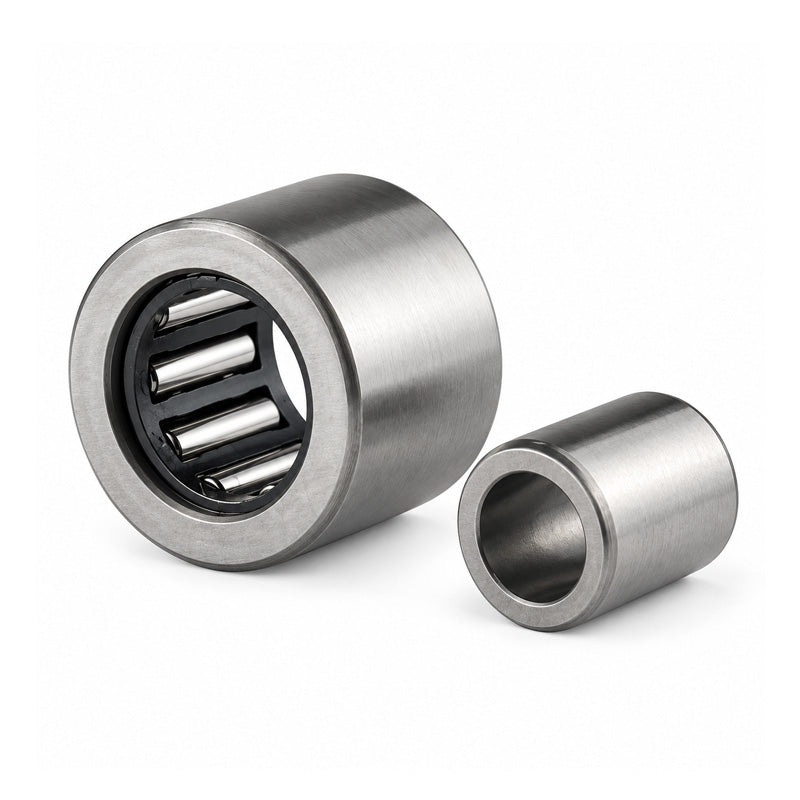

Major Brand NKI20/16 Needle Roller Bearing With Shaft Sleeve 20x32x16mm
Major Brand NKI20/16 Needle Roller Bearing With Shaft Sleeve 20x32x16mm
Regular price
$24.63
ex VAT
Regular price
Sale price
$24.63
ex VAT
In stock
Price Break
10+
$11.63
19+
$10.98
29+
$10.85
39+
$10.72
49+
$10.59
74+
$10.46
99+
$9.80
199+
$9.67
249+
$9.54
499+
$9.41
999+
$9.15
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load | 15400 N |
| Static load | 24500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| F | 24mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 22mm |
| Da max | 30mm |
| ra max | 0.3mm |
