SKU: NKI20/16-EU

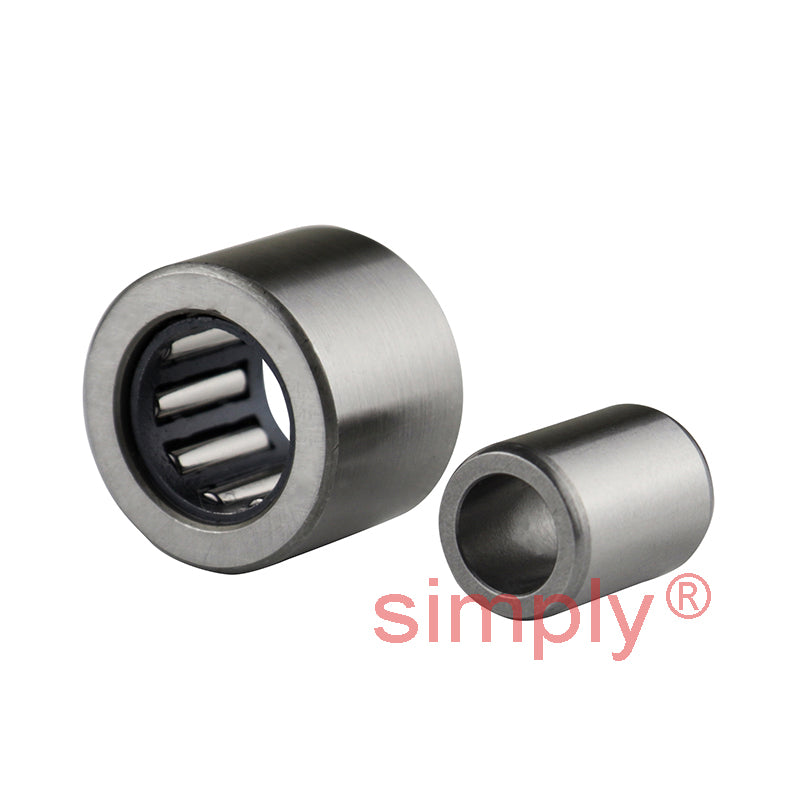

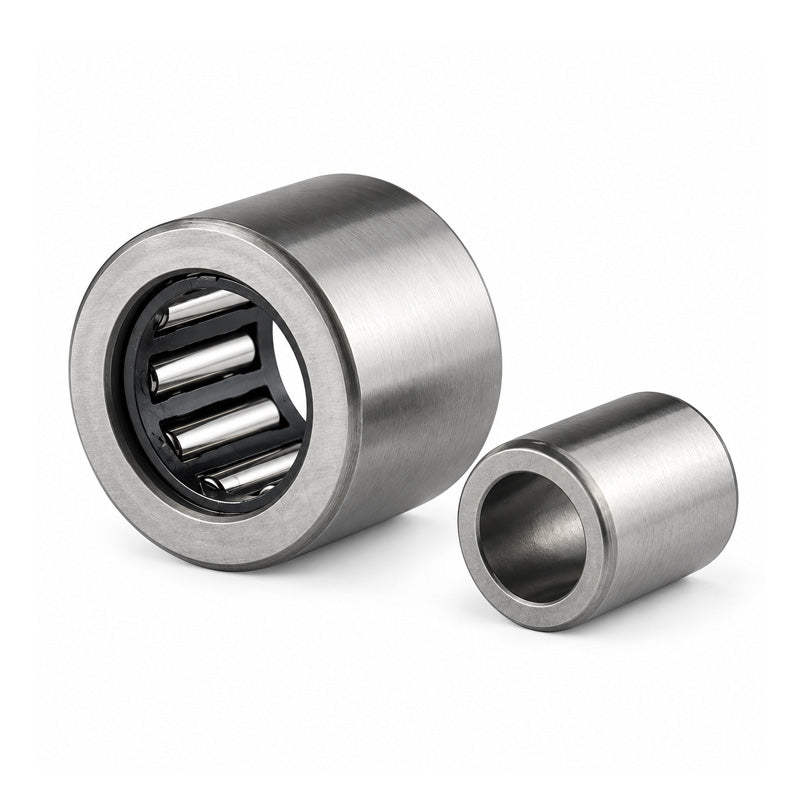

NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm
NKI20/16 Budget Needle Roller Bearing / Shaft Sleeve 20x32x16mm
Regular price
$27.66
ex VAT
Regular price
Sale price
$27.66
ex VAT
In stock
Price Break
10+
$24.62
19+
$23.23
29+
$22.96
39+
$22.68
49+
$22.40
74+
$22.13
99+
$20.75
199+
$20.47
249+
$20.19
499+
$19.92
999+
$19.36
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load C | 15400 N |
| Static load Co | 24500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| F | 24mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 22mm |
| Da max | 30mm |
| ra max | 0.3mm |
