SKU: NKI12/20-MB

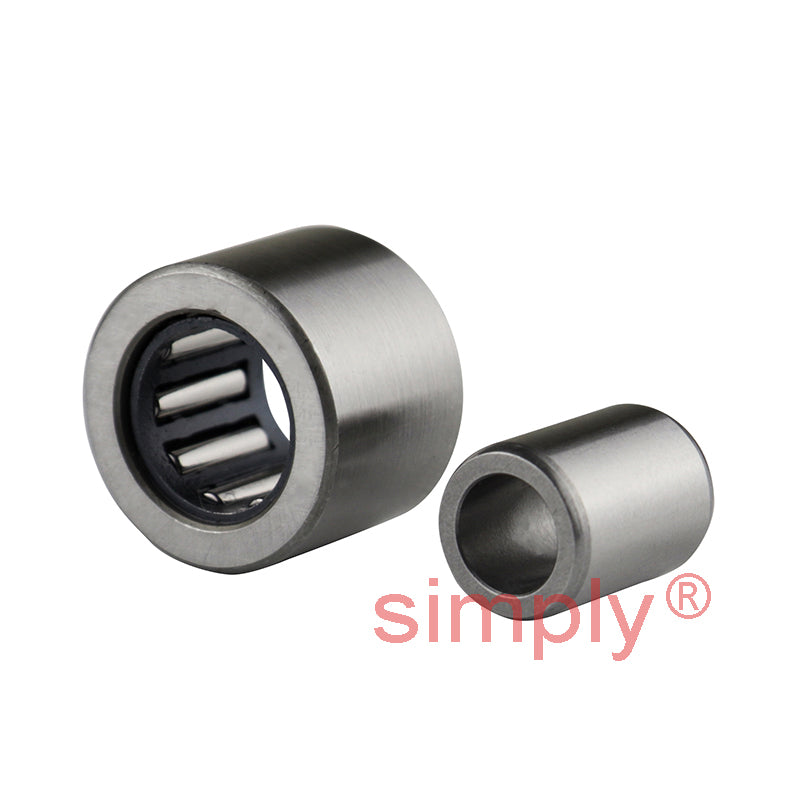

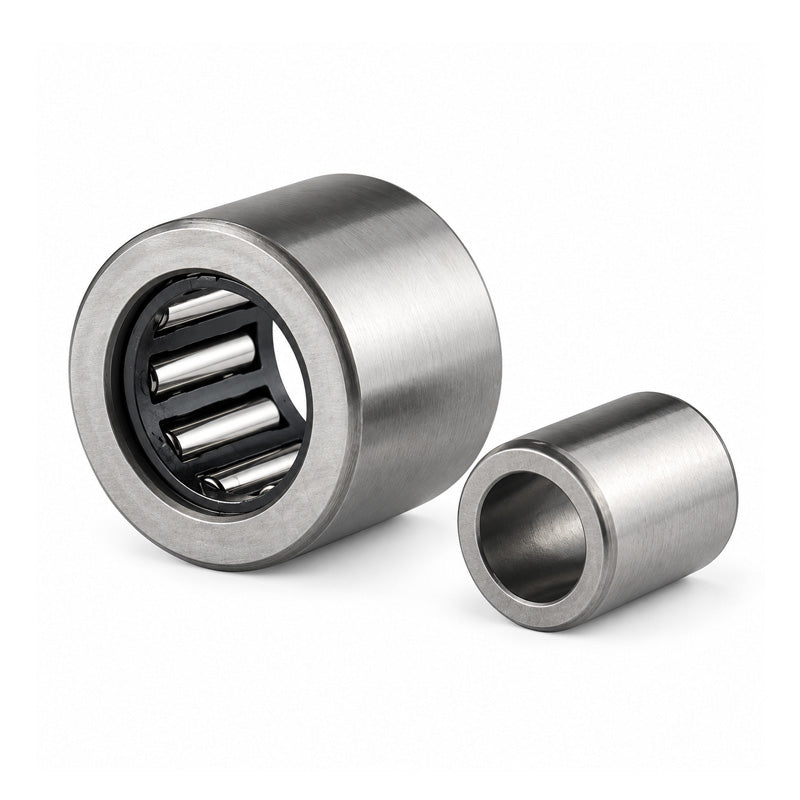

Major Brand NKI12/20 Needle Roller Bearing With Shaft Sleeve 12x24x20mm
Major Brand NKI12/20 Needle Roller Bearing With Shaft Sleeve 12x24x20mm
Regular price
$24.89
ex VAT
Regular price
Sale price
$24.89
ex VAT
In stock
Price Break
10+
$11.76
19+
$11.10
29+
$10.96
39+
$10.83
49+
$10.70
74+
$10.57
99+
$9.91
199+
$9.78
249+
$9.64
499+
$9.51
999+
$9.25
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 20mm |
| Dynamic load | 14500 N |
| Static load | 20000 N |
| Fatigue load limit Pu | 2500 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
