SKU: NKI10/16-MB
Major Brand NKI10/16 Needle Roller Bearing With Shaft Sleeve 10x22x16mm
Major Brand NKI10/16 Needle Roller Bearing With Shaft Sleeve 10x22x16mm
Regular price
$37.18
ex VAT
Regular price
Sale price
$37.18
ex VAT
In stock
Price Break
10+
$33.09
19+
$31.23
29+
$30.86
39+
$30.49
49+
$30.12
74+
$29.74
99+
$27.89
199+
$27.51
249+
$27.14
499+
$26.77
999+
$26.03
Couldn't load pickup availability
Description
Description
|

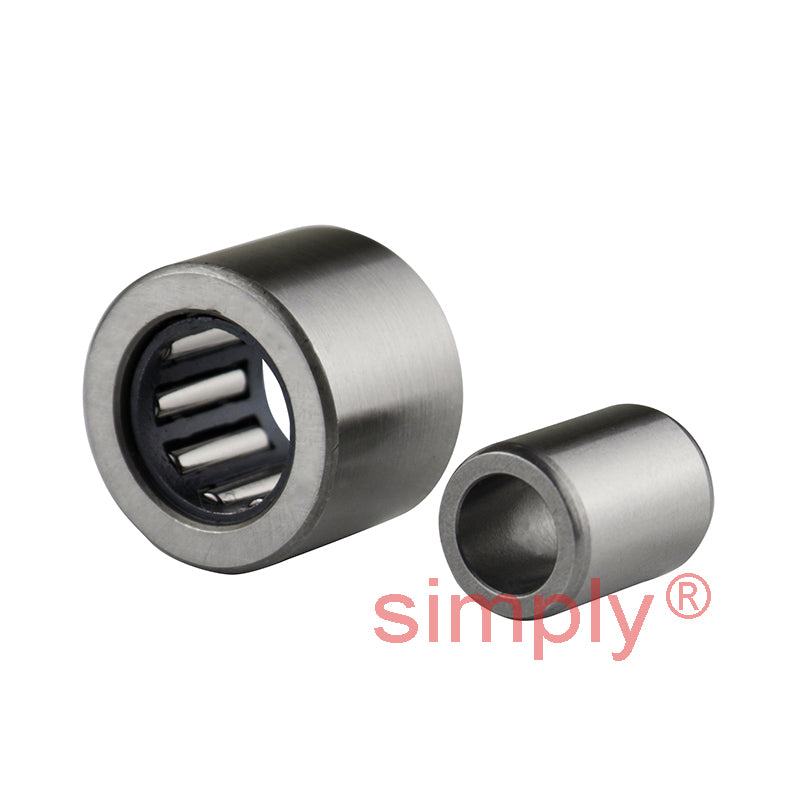

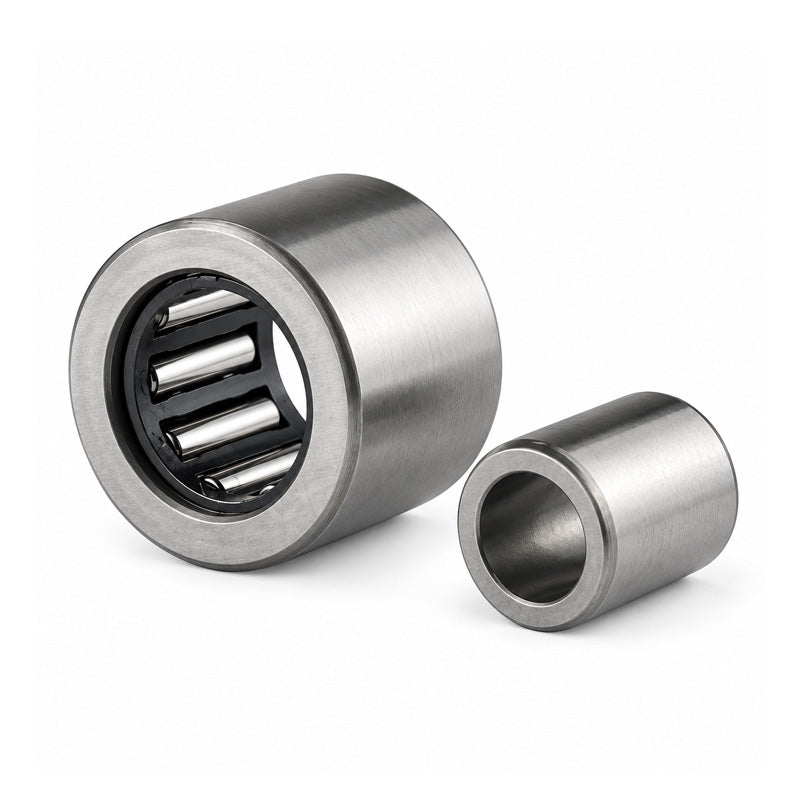

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 16mm |
| Dynamic load | 10200 N |
| Static load | 12500 N |
| Fatigue load limit Pu | 1530 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
