SKU: NK9/12TN-MB

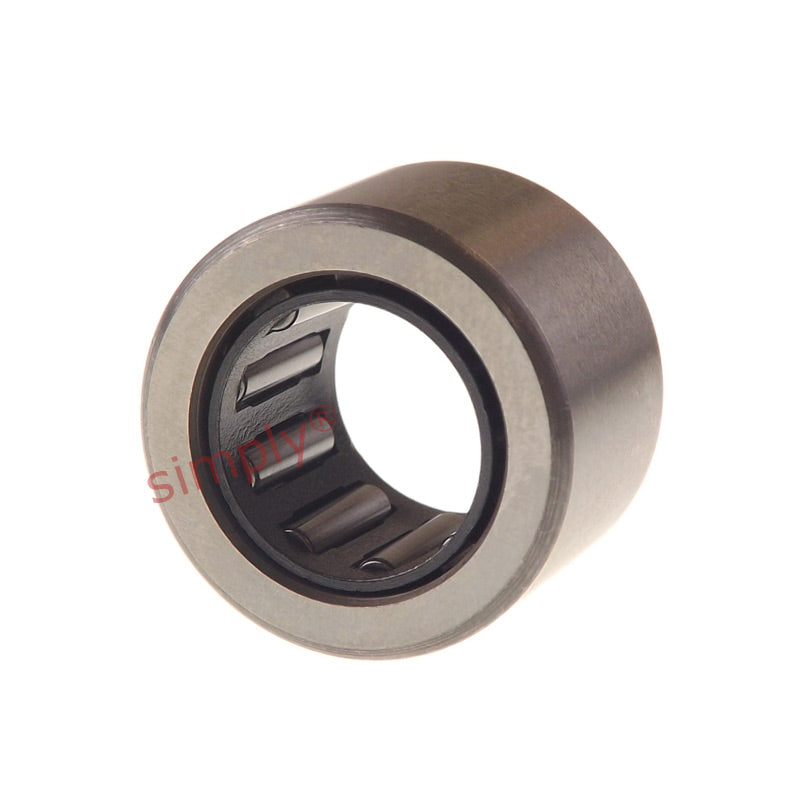

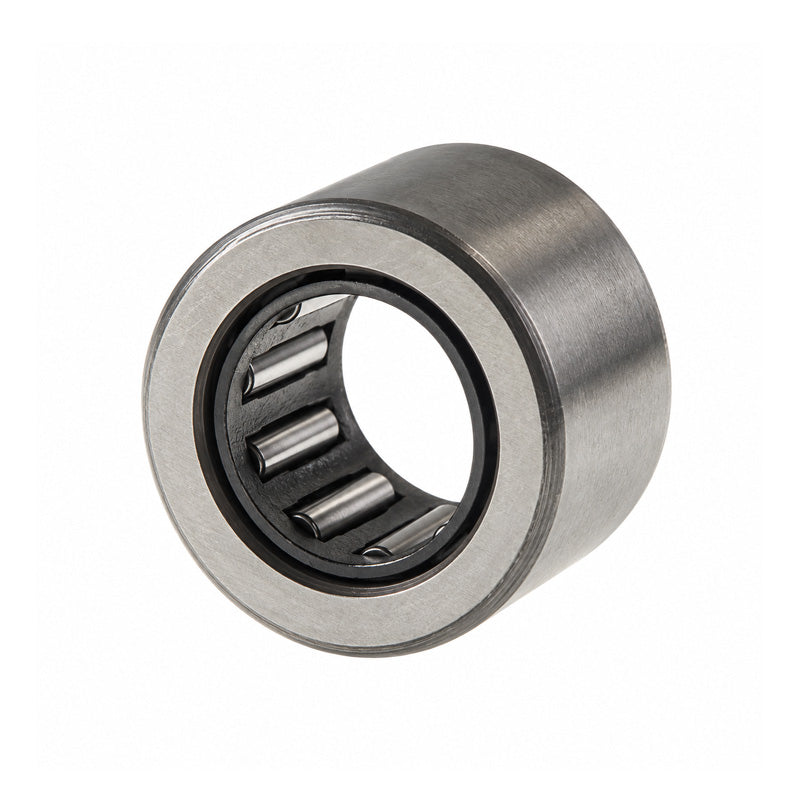

Major Brand NK9/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 9x16x12mm
Major Brand NK9/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 9x16x12mm
Regular price
$14.60
ex VAT
Regular price
Sale price
$14.60
ex VAT
In stock
Price Break
10+
$6.90
19+
$6.51
29+
$6.43
39+
$6.36
49+
$6.28
74+
$6.20
99+
$5.81
199+
$5.74
249+
$5.66
499+
$5.58
999+
$5.43
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 16mm
- Width:
- 12mm
Technical
Technical
| Fw | 9mm |
|---|---|
| D | 16mm |
| C | 12mm |
| Dynamic load | 4400 N |
| Static load | 5200 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| r1r2 | 0.3mm |
| Da max | 14mm |
| ra max | 0.3mm |
| Seal | G9x16x3 |
| Weight | 10 g |
