SKU: NK7/12TN-EU

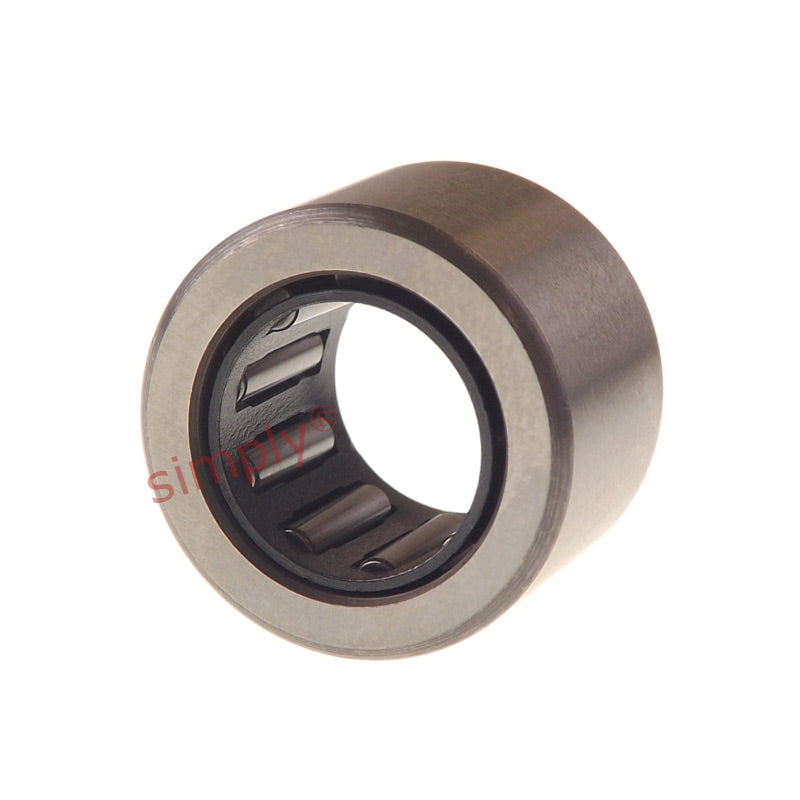

NK7/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 7x14x12mm
NK7/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 7x14x12mm
Regular price
$12.94
ex VAT
Regular price
Sale price
$12.94
ex VAT
In stock
Price Break
10+
$11.52
19+
$10.87
29+
$10.74
39+
$10.61
49+
$10.48
74+
$10.35
99+
$9.71
199+
$9.58
249+
$9.45
499+
$9.32
999+
$9.06
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 12mm |
| Dynamic load C | 3580 N |
| Static load Co | 3750 N |
| Fatigue load limit Pu | 415 N |
| Speed in grease | 30000 rpm |
| Speed in oil | 43000 rpm |
| r1r2 | 0.3mm |
| Da max | 12mm |
| ra max | 0.3mm |
| Seal | G7x14x2 |
| Weight | 8.2 g |
