SKU: NK6/12TN-MB

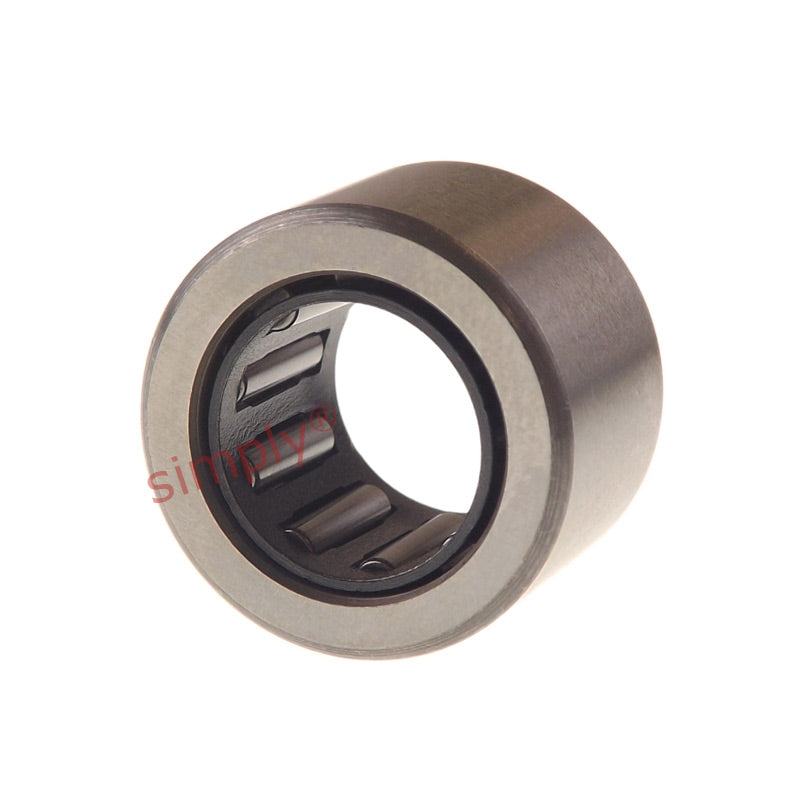

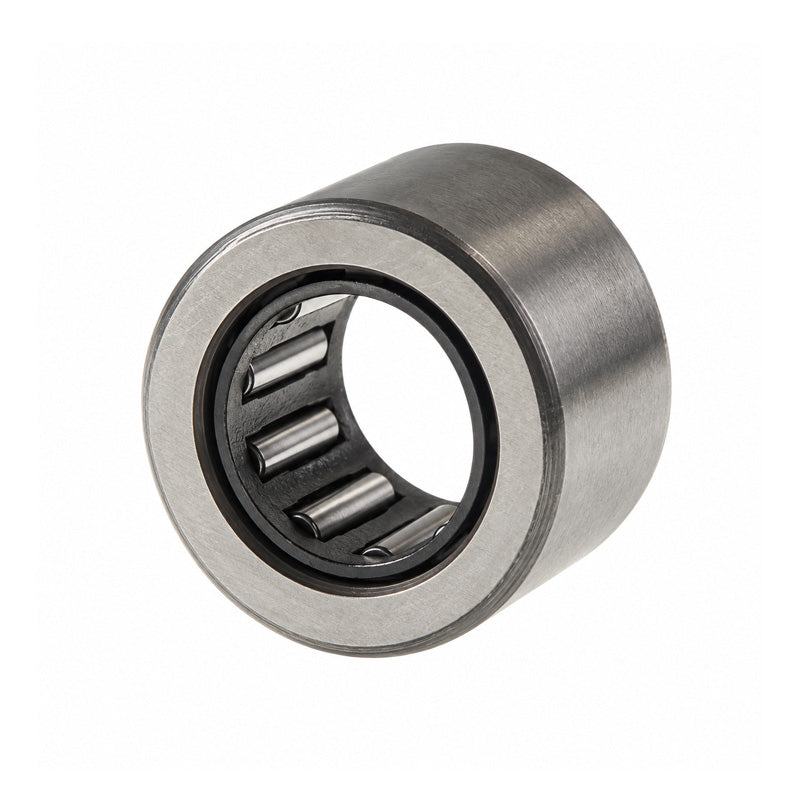

Major Brand NK6/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x12mm
Major Brand NK6/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x12mm
Regular price
$15.90
ex VAT
Regular price
Sale price
$15.90
ex VAT
In stock
Price Break
10+
$14.15
19+
$13.36
29+
$13.20
39+
$13.04
49+
$12.88
74+
$12.72
99+
$11.93
199+
$11.77
249+
$11.61
499+
$11.45
999+
$11.13
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 12mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 12mm |
| C | 12mm |
| Dynamic load | 3300 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Speed in grease | 32000 rpm |
| Speed in oil | 45000 rpm |
| r1r2 | 0.15mm |
| Da max | 10.8mm |
| ra max | 0.1mm |
| Seal | G6x12x2 |
| Weight | 5.7 g |
