SKU: NK50/25TN-MB

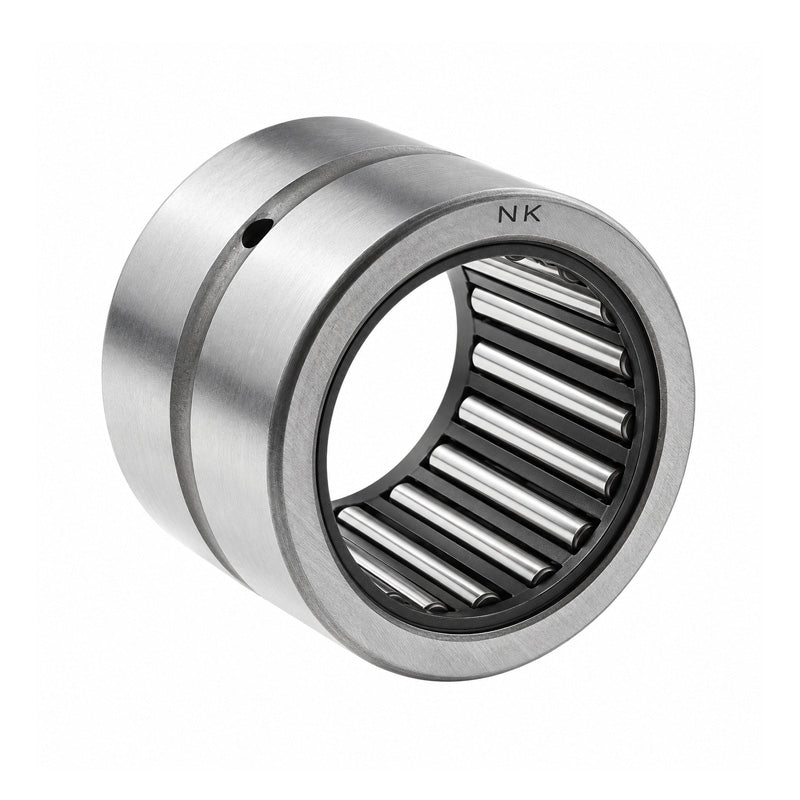

Major Brand NK50/25TN Needle Roller Bearing With Flanges without Shaft Sleeve 50x62x25mm
Major Brand NK50/25TN Needle Roller Bearing With Flanges without Shaft Sleeve 50x62x25mm
Regular price
$50.36
ex VAT
Regular price
Sale price
$50.36
ex VAT
In stock
Price Break
10+
$44.82
19+
$42.30
29+
$41.80
39+
$41.30
49+
$40.79
74+
$40.29
99+
$37.77
199+
$37.27
249+
$36.76
499+
$36.26
999+
$35.25
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 25mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 25mm |
| Dynamic load | 38000 N |
| Static load | 78000 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| r1r2 | 0.6mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Seal | G/SD50x62x4 |
| Weight | 160 g |
