SKU: NK47/20-MB

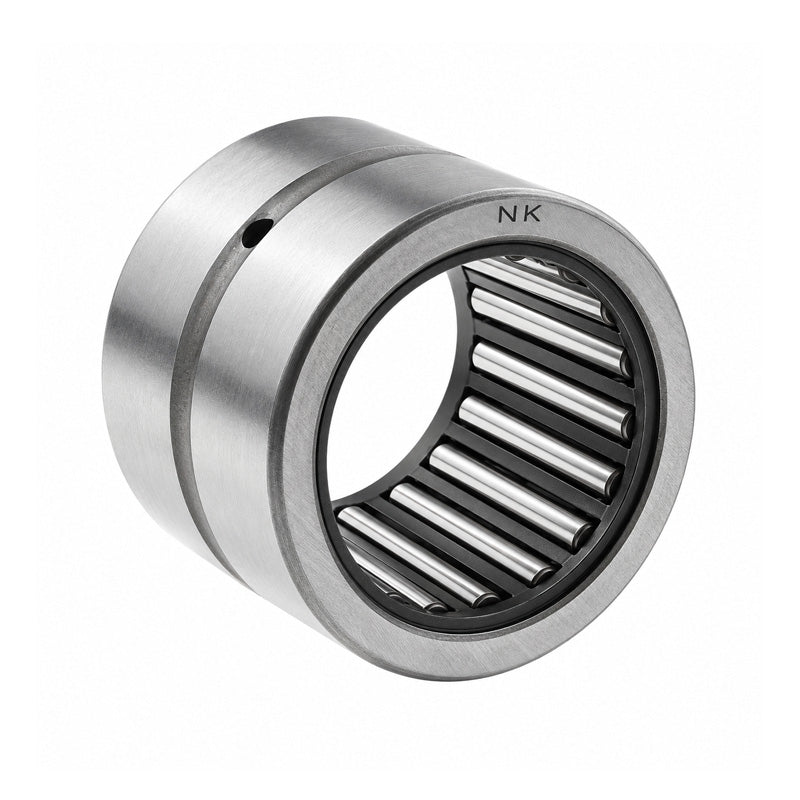

Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Regular price
$32.88
ex VAT
Regular price
Sale price
$32.88
ex VAT
In stock
Price Break
10+
$29.26
19+
$27.62
29+
$27.29
39+
$26.96
49+
$26.63
74+
$26.30
99+
$24.66
199+
$24.33
249+
$24.00
499+
$23.67
999+
$23.02
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 47mm
- Outside Diameter:
- 57mm
- Width:
- 20mm
Technical
Technical
| Fw | 47mm |
|---|---|
| D | 57mm |
| C | 20mm |
| Dynamic load | 29200 N |
| Static load | 61000 N |
| Fatigue load limit Pu | 7650 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| r1r2 | 0.3mm |
| Da max | 55mm |
| ra max | 0.3mm |
| Weight | 95 g |
