SKU: NK43/30-EU

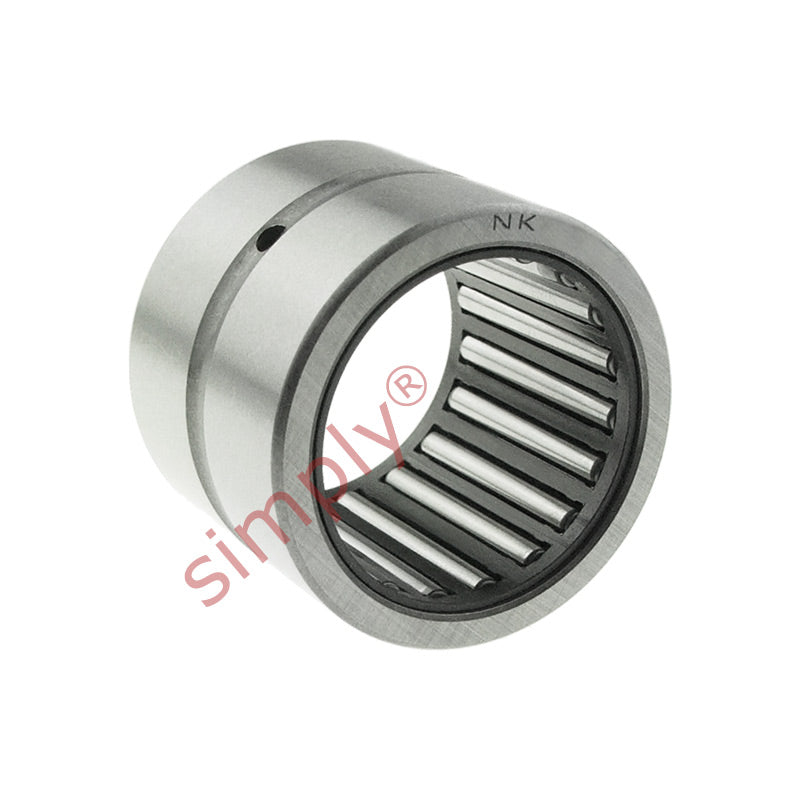

NK43/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 43x53x30mm
NK43/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 43x53x30mm
Regular price
$17.43
ex VAT
Regular price
Sale price
$17.43
ex VAT
In stock
Price Break
10+
$8.23
19+
$7.77
29+
$7.68
39+
$7.59
49+
$7.49
74+
$7.40
99+
$6.94
199+
$6.85
249+
$6.75
499+
$6.66
999+
$6.48
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 43mm
- Outside Diameter:
- 53mm
- Width:
- 30mm
Technical
Technical
| Fw | 43mm |
|---|---|
| D | 53mm |
| C | 30mm |
| Dynamic load C | 40200 N |
| Static load Co | 90000 N |
| Fatigue load limit Pu | 11600 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 51mm |
| ra max | 0.3mm |
| Seal | G43x53x4 |
| Weight | 130 g |
