SKU: NK43/20-MB

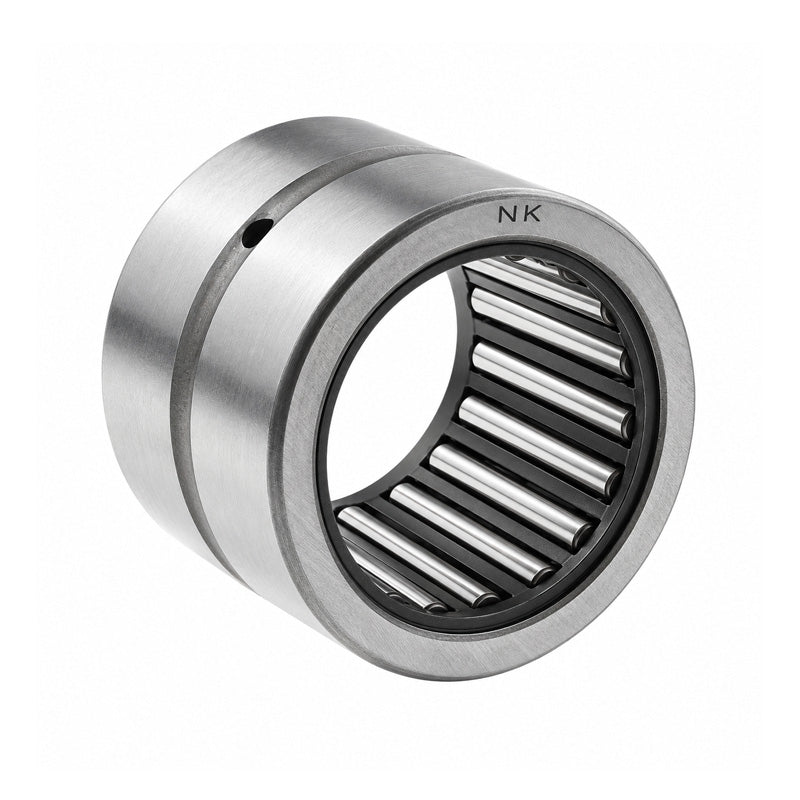

Major Brand NK43/20 Needle Roller Bearing With Flanges without Shaft Sleeve 43x53x20mm
Major Brand NK43/20 Needle Roller Bearing With Flanges without Shaft Sleeve 43x53x20mm
Regular price
$29.51
ex VAT
Regular price
Sale price
$29.51
ex VAT
In stock
Price Break
10+
$13.94
19+
$13.15
29+
$13.00
39+
$12.84
49+
$12.68
74+
$12.53
99+
$11.75
199+
$11.59
249+
$11.43
499+
$11.28
999+
$10.96
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 43mm
- Outside Diameter:
- 53mm
- Width:
- 20mm
Technical
Technical
| Fw | 43mm |
|---|---|
| D | 53mm |
| C | 20mm |
| Dynamic load | 27500 N |
| Static load | 55000 N |
| Fatigue load limit Pu | 6950 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 51mm |
| ra max | 0.3mm |
| Seal | G43x53x4 |
| Weight | 86 g |
