SKU: NK28/30-MB

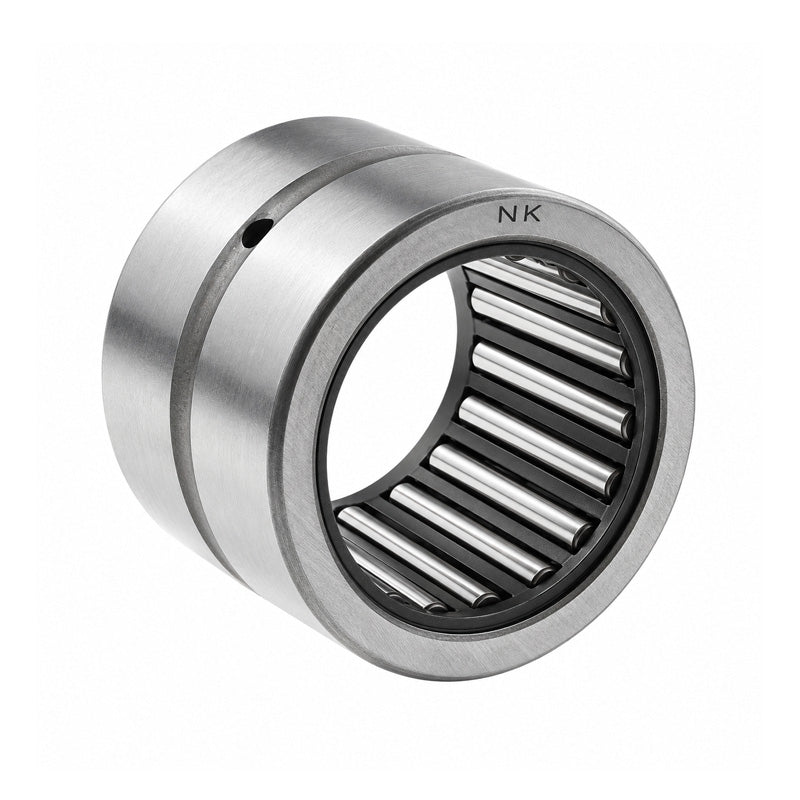

Major Brand NK28/30 Needle Roller Bearing With Flanges without Shaft Sleeve 28x37x30mm
Major Brand NK28/30 Needle Roller Bearing With Flanges without Shaft Sleeve 28x37x30mm
Regular price
$24.10
ex VAT
Regular price
Sale price
$24.10
ex VAT
In stock
Price Break
10+
$21.45
19+
$20.24
29+
$20.00
39+
$19.76
49+
$19.52
74+
$19.28
99+
$18.08
199+
$17.83
249+
$17.59
499+
$17.35
999+
$16.87
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 31900 N |
| Static load | 60000 N |
| Fatigue load limit Pu | 7800 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 | 0.3mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Seal | G/SD28x37x4 |
| Weight | 82 g |
