SKU: NK19/16-MB

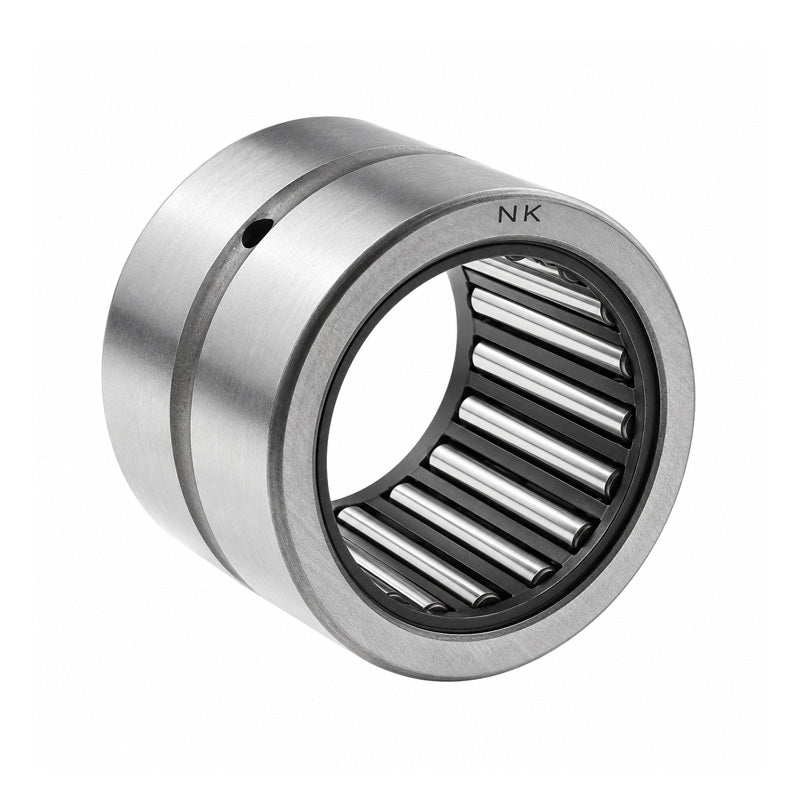

Major Brand NK19/16 Needle Roller Bearing With Flanges without Shaft Sleeve 19x27x16mm
Major Brand NK19/16 Needle Roller Bearing With Flanges without Shaft Sleeve 19x27x16mm
Regular price
$30.52
ex VAT
Regular price
Sale price
$30.52
ex VAT
In stock
Price Break
10+
$27.16
19+
$25.64
29+
$25.33
39+
$25.03
49+
$24.72
74+
$24.42
99+
$22.89
199+
$22.58
249+
$22.28
499+
$21.97
999+
$21.36
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 19mm
- Outside Diameter:
- 27mm
- Width:
- 16mm
Technical
Technical
| Fw | 19mm |
|---|---|
| D | 27mm |
| C | 16mm |
| Dynamic load | 13400 N |
| Static load | 19000 N |
| Fatigue load limit Pu | 2320 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| r1r2 | 0.3mm |
| Da max | 25mm |
| ra max | 0.3mm |
| Seal | G/SD19x27x4 |
| Weight | 26 g |
