SKU: NK17/20-MB

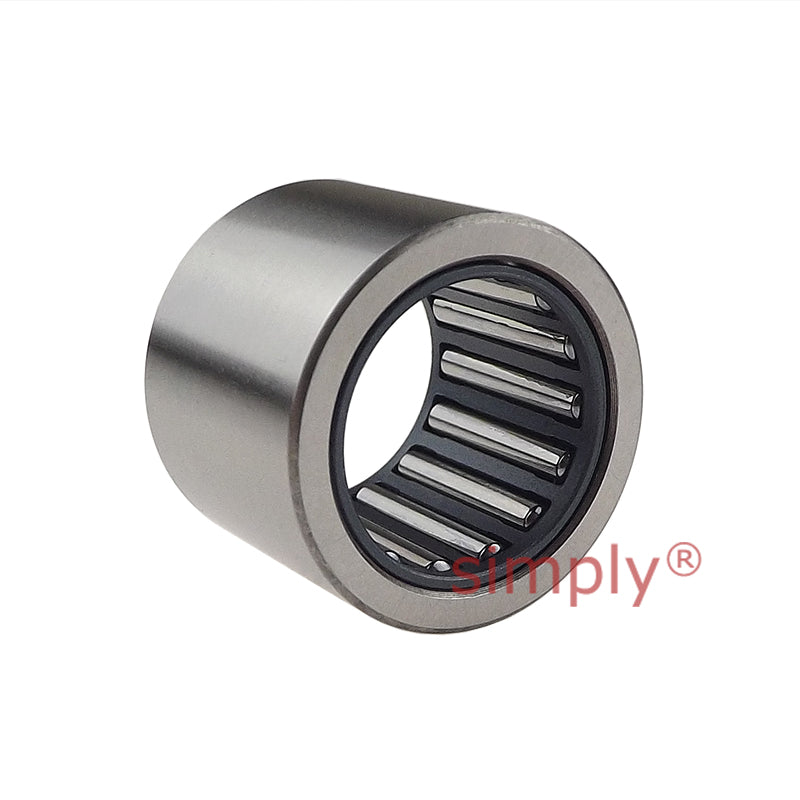

Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
Regular price
$33.39
ex VAT
Regular price
Sale price
$33.39
ex VAT
In stock
Price Break
10+
$29.72
19+
$28.05
29+
$27.71
39+
$27.38
49+
$27.05
74+
$26.71
99+
$25.04
199+
$24.71
249+
$24.37
499+
$24.04
999+
$23.37
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 25mm
- Width:
- 20mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 25mm |
| C | 20mm |
| Dynamic load | 15100 N |
| Static load | 22000 N |
| Fatigue load limit Pu | 2750 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| r1r2 | 0.3mm |
| Da max | 23mm |
| ra max | 0.3mm |
| Seal | G/SD17x25x3 |
| Weight | 30 g |
