SKU: NJ2309ECP/C3-SKF

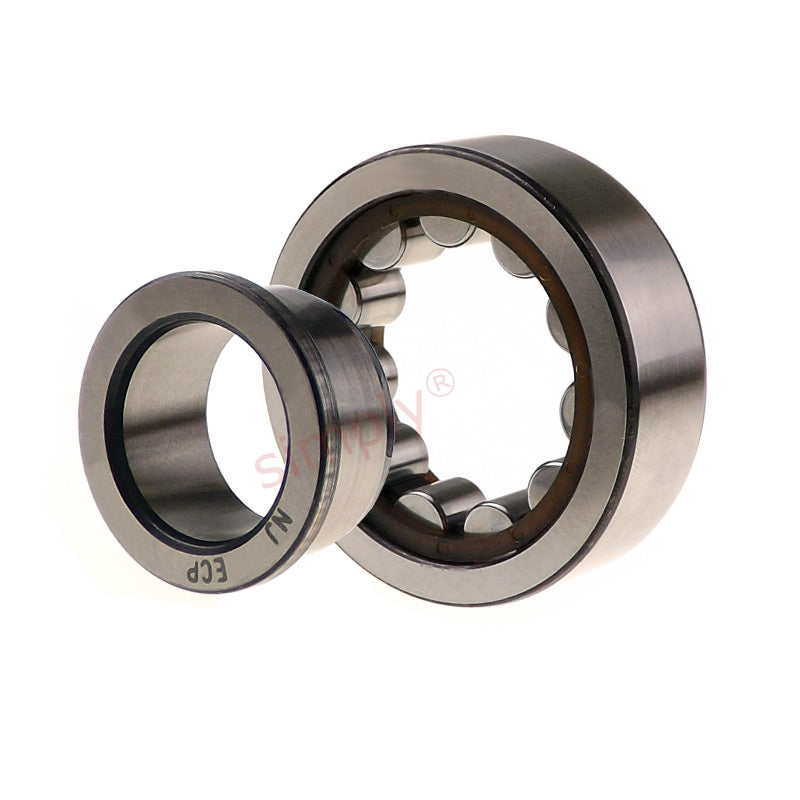

SKF NJ2309ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x36mm
SKF NJ2309ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x36mm
Regular price
$173.88
ex VAT
Regular price
Sale price
$173.88
ex VAT
In stock
Price Break
10+
$82.12
19+
$77.51
29+
$76.59
39+
$75.66
49+
$74.74
74+
$73.82
99+
$69.20
199+
$68.28
249+
$67.36
499+
$66.44
999+
$64.59
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 36mm |
| Dynamic load C | 160 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.33 kg |
| Alt cage | ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F,E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 3.2mm |
| da min | 54mm |
| da max | 56mm |
| db | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
