SKU: NJ2308-EU

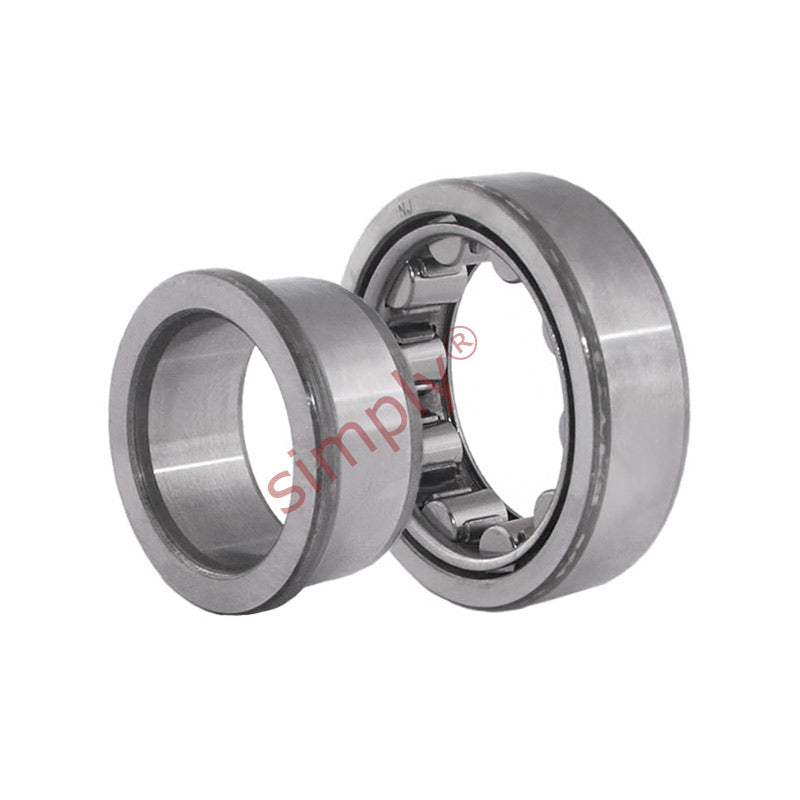

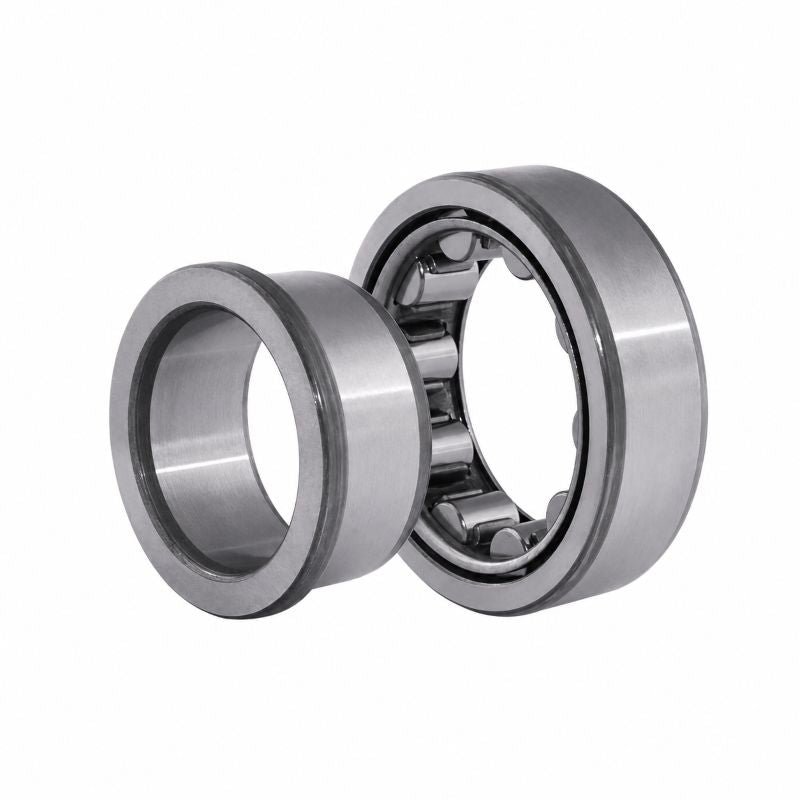

NJ2308 Budget Single Row Cylindrical Roller Bearing 40x90x33mm
NJ2308 Budget Single Row Cylindrical Roller Bearing 40x90x33mm
Regular price
$31.34
ex VAT
Regular price
Sale price
$31.34
ex VAT
In stock
Price Break
10+
$14.80
19+
$13.97
29+
$13.80
39+
$13.64
49+
$13.47
74+
$13.30
99+
$12.47
199+
$12.31
249+
$12.14
499+
$11.97
999+
$11.64
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 33mm |
| Dynamic load C | 129 kN |
| Static load Co | 120 kN |
| Fatigue load limit Pu | 15.3 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.95 kg |
| Cage options | J.M.ML |
| d1 | 57.5mm |
| D1 | 75.6mm |
| F, E | 52mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 2.9mm |
| da min | 49mm |
| da max | 50mm |
| db min | 60mm |
| Da max | 81mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
