SKU: NJ2222-EU

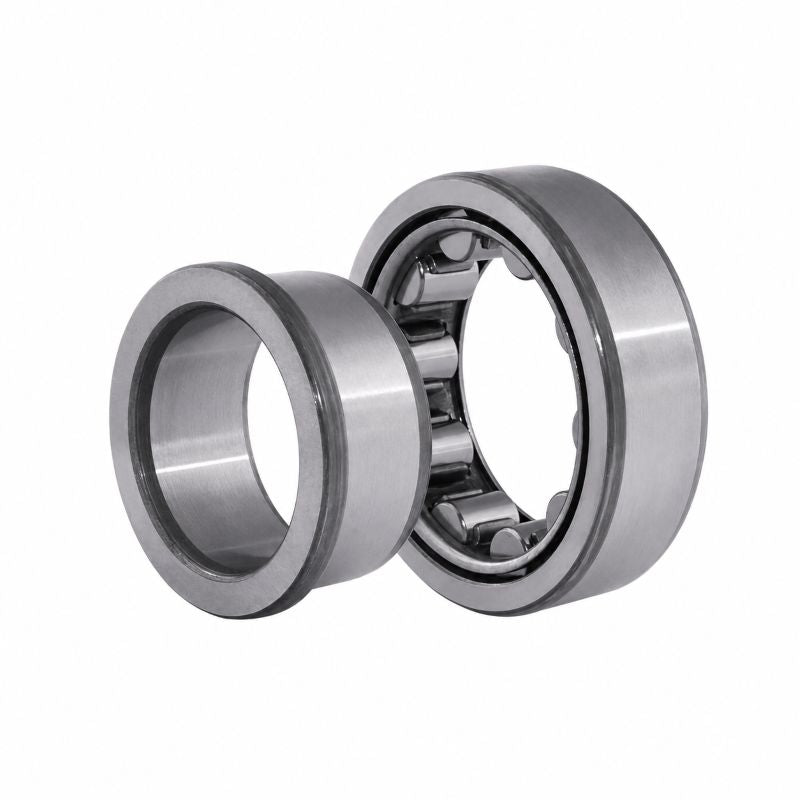

NJ2222 Budget Single Row Cylindrical Roller Bearing 110x200x53mm
NJ2222 Budget Single Row Cylindrical Roller Bearing 110x200x53mm
Regular price
$517.36
ex VAT
Regular price
Sale price
$517.36
ex VAT
In stock
Price Break
10+
$460.45
19+
$434.58
29+
$429.41
39+
$424.24
49+
$419.06
74+
$413.89
99+
$388.02
199+
$382.85
249+
$377.67
499+
$372.50
999+
$362.15
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 53mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 53mm |
| Dynamic load C | 440 kN |
| Static load Co | 520 kN |
| Fatigue load limit Pu | 61 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4000 rpm |
| Weight | 6.75 kg |
| Cage options | J.ML |
| d1 | 141mm |
| D1 | 174mm |
| F, E | 132.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 3.7mm |
| da min | 122mm |
| da max | 129mm |
| db min | 145mm |
| Da max | 188mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
