SKU: NJ2211-EU

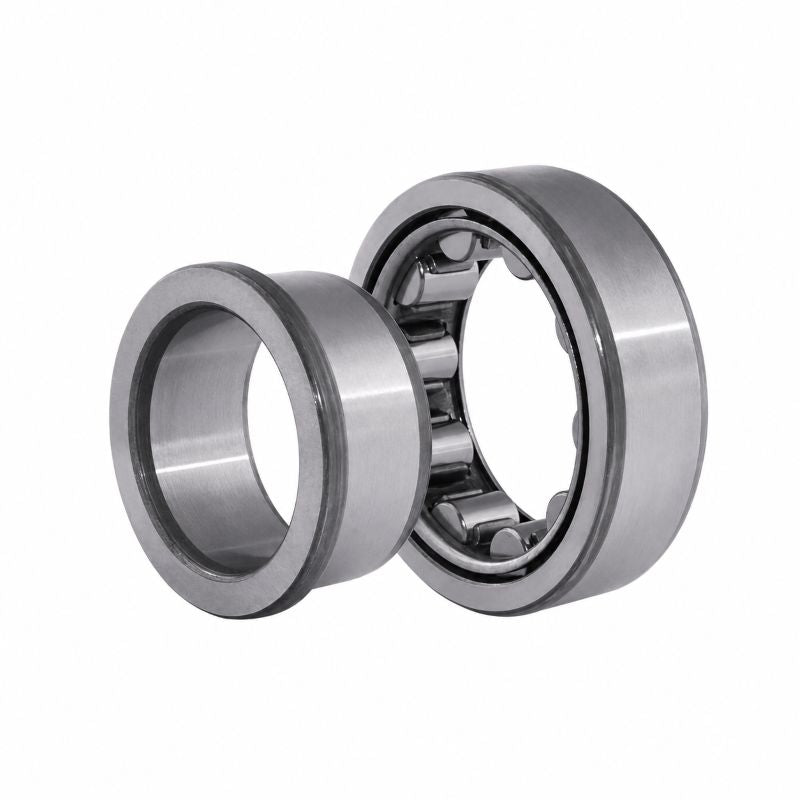

NJ2211 Budget Single Row Cylindrical Roller Bearing 55x100x25mm
NJ2211 Budget Single Row Cylindrical Roller Bearing 55x100x25mm
Regular price
$97.53
ex VAT
Regular price
Sale price
$97.53
ex VAT
In stock
Price Break
10+
$86.80
19+
$81.93
29+
$80.95
39+
$79.97
49+
$79.00
74+
$78.02
99+
$73.15
199+
$72.17
249+
$71.20
499+
$70.22
999+
$68.27
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 114 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.3 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.81 kg |
| Cage options | J.M.ML |
| d1 | 70.8mm |
| D1 | 86.3mm |
| F, E | 66mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| s | 1.5mm |
| da min | 64mm |
| da max | 64mm |
| db min | 73mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.2 |
| Angle ring | HJ2211EC |
| Angle ring weight | 0.085kg |
| B1 | 6mm |
| B2 | 10mm |
