SKU: NJ221-EU

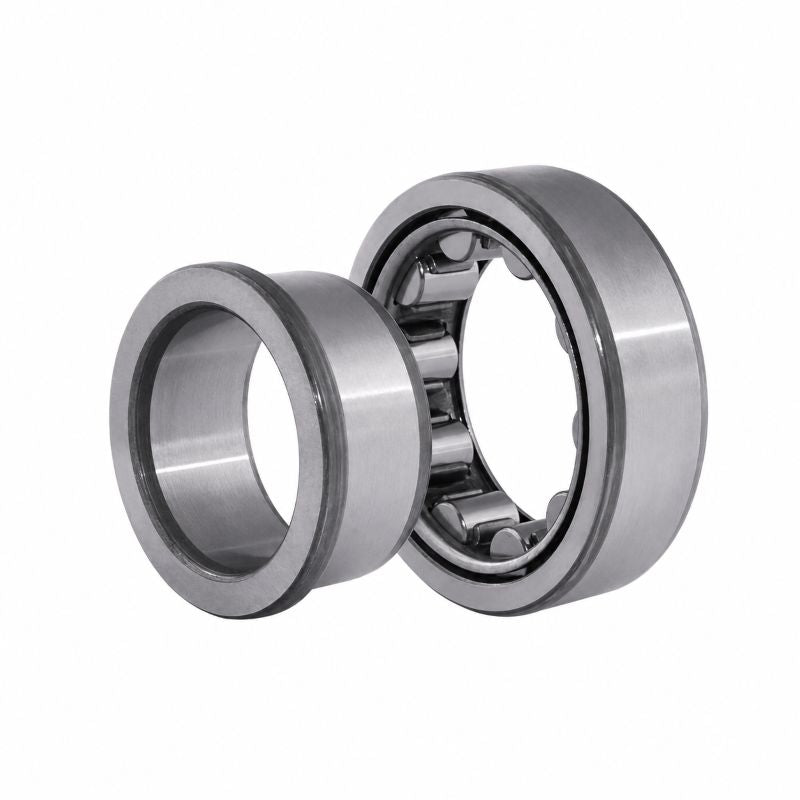

NJ221 Budget Single Row Cylindrical Roller Bearing 105x190x36mm
NJ221 Budget Single Row Cylindrical Roller Bearing 105x190x36mm
Regular price
$178.93
ex VAT
Regular price
Sale price
$178.93
ex VAT
In stock
Price Break
10+
$84.51
19+
$79.76
29+
$78.81
39+
$77.86
49+
$76.91
74+
$75.96
99+
$71.21
199+
$70.26
249+
$69.31
499+
$68.36
999+
$66.47
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load C | 300 kN |
| Static load Co | 315 kN |
| Fatigue load limit Pu | 36.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4300 rpm |
| Weight | 4.1 kg |
| Cage options | ML |
| d1 | 134mm |
| D1 | 164mm |
| F, E | 125mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2mm |
| da min | 117mm |
| da max | 122mm |
| db min | 137mm |
| Da max | 178mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ221EC |
| Angle ring weight | 0.5kg |
| B1 | 10mm |
| B2 | 17.5mm |
