SKU: NJ2207-EU

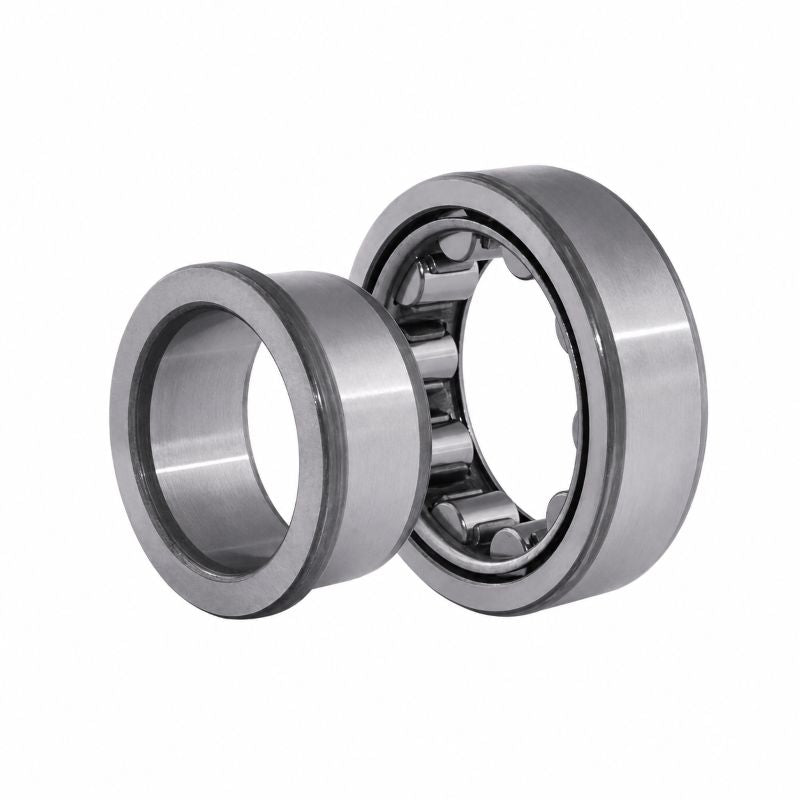

NJ2207 Budget Single Row Cylindrical Roller Bearing 35x72x23mm
NJ2207 Budget Single Row Cylindrical Roller Bearing 35x72x23mm
Regular price
$31.53
ex VAT
Regular price
Sale price
$31.53
ex VAT
In stock
Price Break
10+
$14.89
19+
$14.05
29+
$13.89
39+
$13.72
49+
$13.55
74+
$13.38
99+
$12.55
199+
$12.38
249+
$12.21
499+
$12.05
999+
$11.71
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 23mm |
| Dynamic load C | 69.5 kN |
| Static load Co | 63 kN |
| Fatigue load limit Pu | 8.15 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.41 kg |
| Cage options | J.ML |
| d1 | 48.1mm |
| D1 | 60.7mm |
| F, E | 44mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| s | 2.8mm |
| da min | 42mm |
| da max | 42mm |
| db min | 50mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
