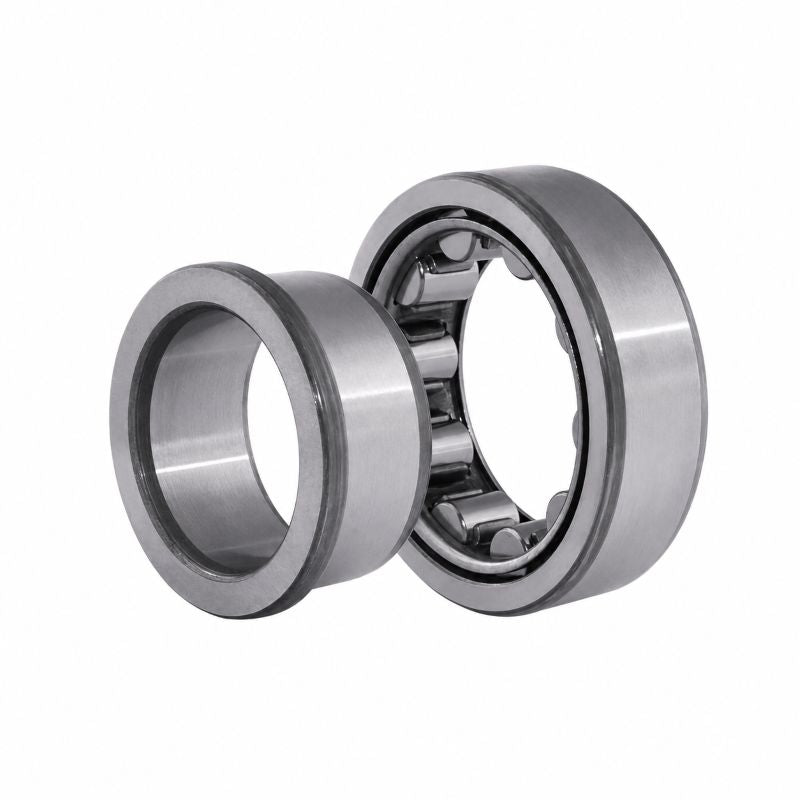

Koyo NJ205J Steel Caged Single Row Cylindrical Roller Bearing 25x52x15mm
Koyo NJ205J Steel Caged Single Row Cylindrical Roller Bearing 25x52x15mm
Regular price
$15.89
ex VAT
Regular price
Sale price
$15.89
ex VAT
In stock
Price Break
10+
$7.50
19+
$7.08
29+
$7.00
39+
$6.91
49+
$6.83
74+
$6.74
99+
$6.32
199+
$6.24
249+
$6.15
499+
$6.07
999+
$5.90
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 28.6 kN |
| Static load Co | 27 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.14 kg |
| Cage options | J.ML |
| d1 | 34.7mm |
| D1 | 43.8mm |
| F, E | 31.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| s | 1.3mm |
| da min | 30mm |
| da max | 30mm |
| db min | 36mm |
| Da max | 46.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
| Angle ring | HJ205EC |
| Angle ring weight | 0.014kg |
| B1 | 3mm |
| B2 | 6mm |
