SKU: NJ202-EU

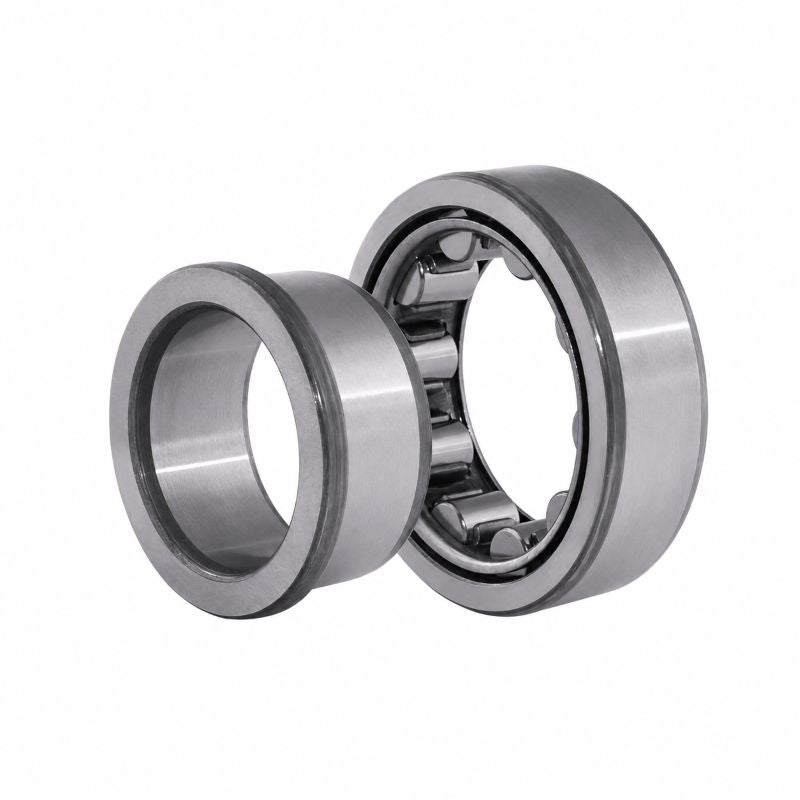

NJ202 Budget Single Row Cylindrical Roller Bearing 15x35x11mm
NJ202 Budget Single Row Cylindrical Roller Bearing 15x35x11mm
Regular price
$14.98
ex VAT
Regular price
Sale price
$14.98
ex VAT
In stock
Price Break
10+
$7.08
19+
$6.68
29+
$6.60
39+
$6.52
49+
$6.44
74+
$6.36
99+
$5.96
199+
$5.88
249+
$5.80
499+
$5.72
999+
$5.57
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 12.5 kN |
| Static load Co | 10.2 kN |
| Fatigue load limit Pu | 1.22 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.048 kg |
| d1 | 21.9mm |
| D1 | 27.9mm |
| F, E | 19.3mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| s | 1mm |
| da min | 18.5mm |
| da max | 18.5mm |
| db min | 23mm |
| Da max | 30.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.15 |
