SKU: NCF3005CV-EU

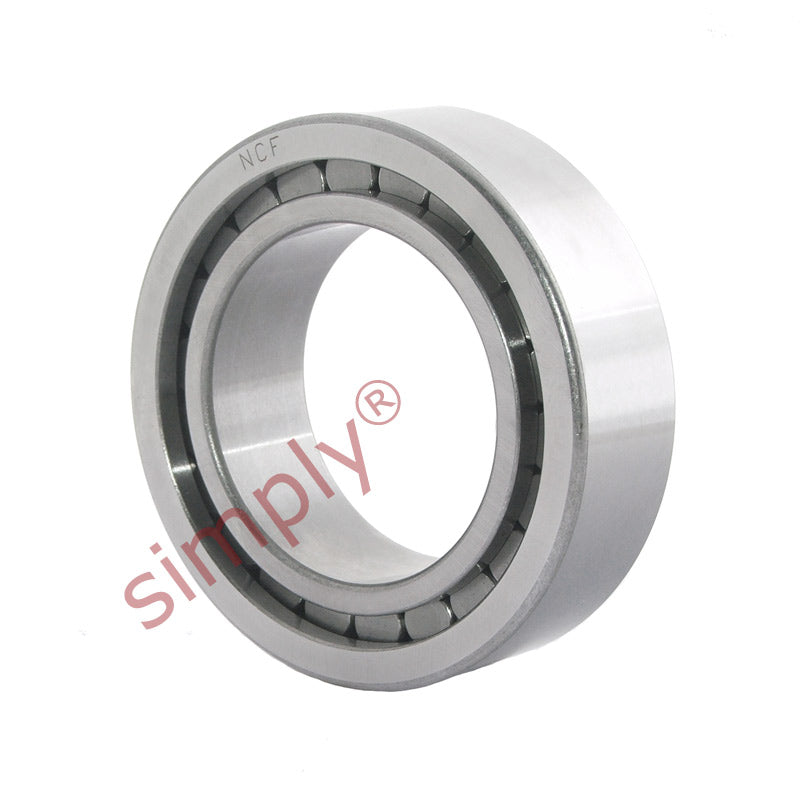

NCF3005CV Budget Single Row Cylindrical Roller Bearing 25x47x16mm
NCF3005CV Budget Single Row Cylindrical Roller Bearing 25x47x16mm
Regular price
$27.57
ex VAT
Regular price
Sale price
$27.57
ex VAT
In stock
Price Break
10+
$13.02
19+
$12.29
29+
$12.14
39+
$12.00
49+
$11.85
74+
$11.70
99+
$10.97
199+
$10.83
249+
$10.68
499+
$10.53
999+
$10.24
Description
Description
|
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing Benefits:Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 16mm |
| Dynamic load C | 31.9 kN |
| Static load Co | 35.5 kN |
| Fatigue load limit Pu | 3.8 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.12 kg |
| d1 | 34mm |
| D1 | 39mm |
| E, F | 42.5mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| s | 1.5mm |
| da min | 29mm |
| das | 32.3mm |
| Da max | 43mm |
| Db max | 45mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
