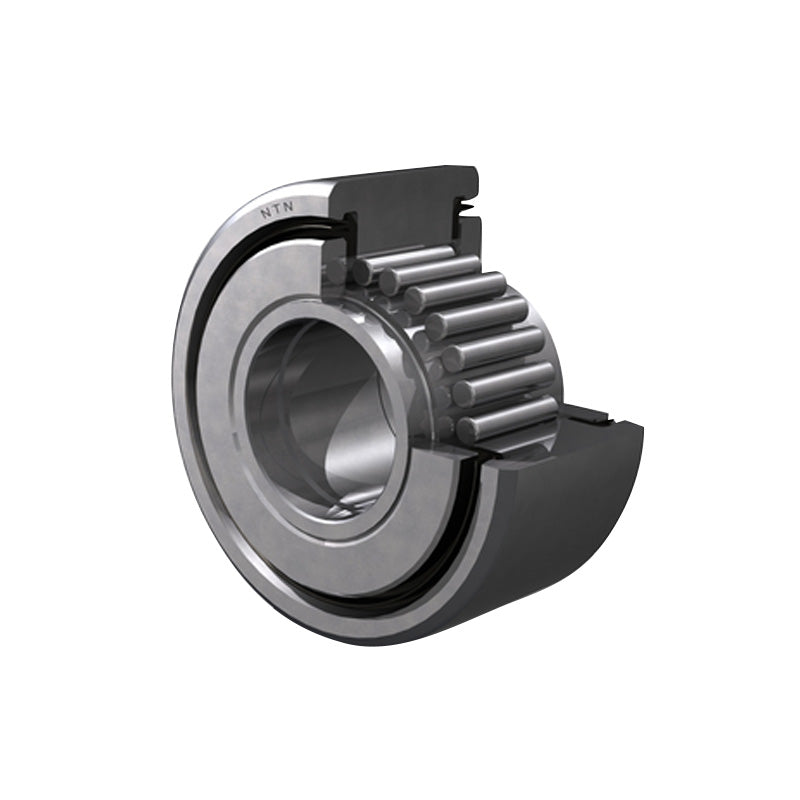

NTN NATV12LL/3AS Yoke Type Track Roller with Inner Race 12x32x14mm
NTN NATV12LL/3AS Yoke Type Track Roller with Inner Race 12x32x14mm
Regular price
$45.74
ex VAT
Regular price
Sale price
$45.74
ex VAT
In stock
Price Break
3+
$21.60
4+
$20.39
9+
$20.14
19+
$19.90
49+
$19.66
99+
$19.42
499+
$18.20
999+
$17.96
1999+
$17.72
2999+
$17.47
4999+
$16.99
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 14mm
Technical
Technical
| d - Inside diameter | 12mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Outer ring width | 14mm |
| F - Under roller diameter | 17mm |
| B - Bearing width | 15mm |
| e - Inlet diameter | 25mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 13 kN |
| C0r - Static load rating | 23 kN |
| Track load capacity | 2.86 kN |
| N - Grease lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
