SKU: NATR25-EU

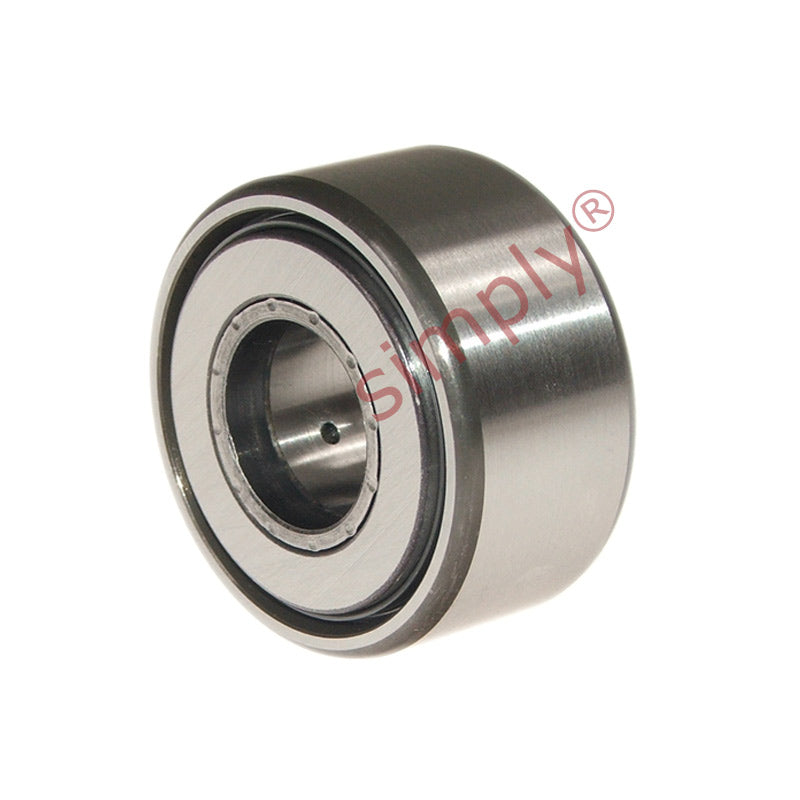

NATR25 Budget Support Roller With Axial Guidance 25x52x25mm
NATR25 Budget Support Roller With Axial Guidance 25x52x25mm
Regular price
$33.86
ex VAT
Regular price
Sale price
$33.86
ex VAT
In stock
Price Break
10+
$15.99
19+
$15.09
29+
$14.92
39+
$14.74
49+
$14.56
74+
$14.38
99+
$13.48
199+
$13.30
249+
$13.12
499+
$12.94
999+
$12.58
Share this product
Description
Description
Budget NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 24mm
Technical
Technical
| D | 52mm |
|---|---|
| d | 25mm |
| C | 24mm |
| B | 25mm |
| d1 | 41.5mm |
| r min | 1mm |
| Speed rating | 1800 rpm |
| Basic dynamic load | 14700 N |
| Basic static load | 25500 N |
| Fatigue load limit Pu | 3100 N |
| Max radial dynamic force | 21600 N |
| Max radial static force | 31000 N |
| Weight | 280 g |
