SKU: NATR10PPA-MB

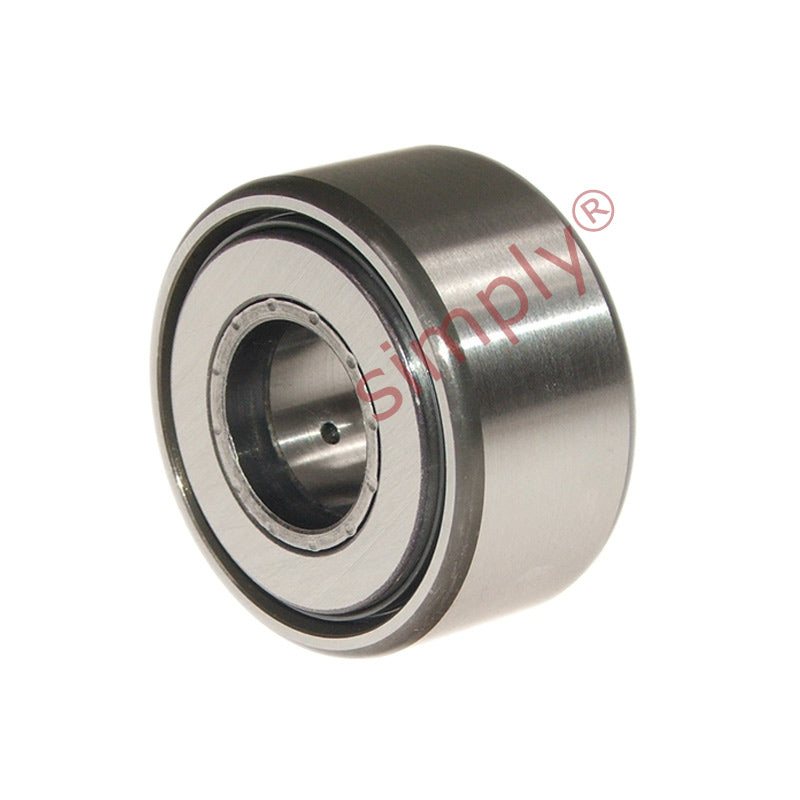

Major Brand NATR10PPA Support Roller With Axial Guidance 10x30x15mm
Major Brand NATR10PPA Support Roller With Axial Guidance 10x30x15mm
Regular price
$36.71
ex VAT
Regular price
Sale price
$36.71
ex VAT
In stock
Price Break
10+
$17.34
19+
$16.36
29+
$16.17
39+
$15.97
49+
$15.78
74+
$15.58
99+
$14.61
199+
$14.42
249+
$14.22
499+
$14.03
999+
$13.64
Share this product
Description
Description
NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 30mm |
| B | 15mm |
| C | 14mm |
| d1 | 23mm |
| r min | 0.6mm |
| r1 min | -mm |
| Speed rating | 5500 rpm |
| Basic dynamic load | 6440 N |
| Basic static load | 8000 N |
| Fatigue load limit Pu | 880 N |
| Max radial dynamic force | 7800 N |
| Max radial static force | 11200 N |
| Weight | 61 g |
