SKU: NAO6x17x10TN-MB

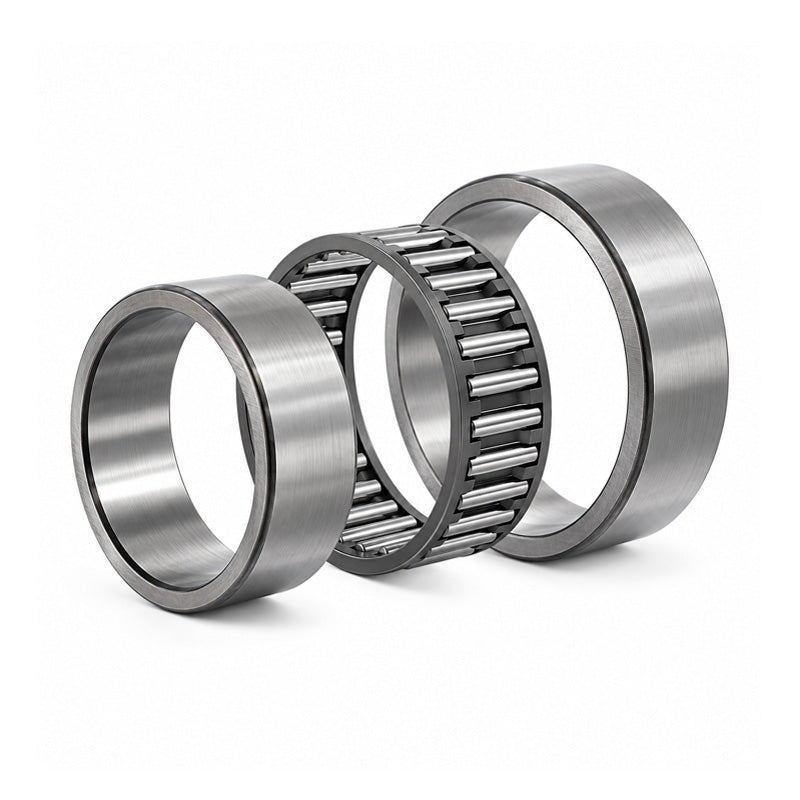

Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
$31.35
ex VAT
Regular price
Sale price
$31.35
ex VAT
In stock
Price Break
10+
$27.90
19+
$26.33
29+
$26.02
39+
$25.71
49+
$25.39
74+
$25.08
99+
$23.51
199+
$23.20
249+
$22.89
499+
$22.57
999+
$21.95
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 17mm
- Width:
- 10mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 17mm |
| B | 10mm |
| Dynamic load | 4570 N |
| Static load | 5700 N |
| Fatigue load limit Pu | 630 N |
| Speed in grease | 18000 rpm |
| Speed in oil | 28000 rpm |
| E | 13mm |
| F | 10mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 12.7mm |
| db | 9.7mm |
| Da | 13.3mm |
| Db | 10.3mm |
| ra max | 0.3mm |
| Weight | 14 g |
