SKU: NAO12x24x13-MB

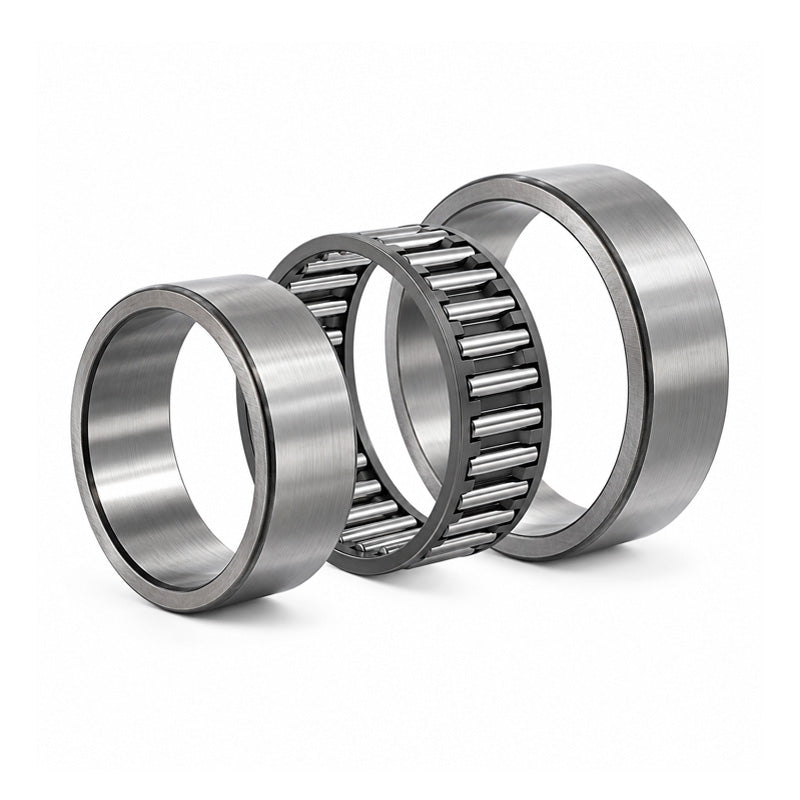

Major Brand NAO12x24x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO12x24x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
$28.96
ex VAT
Regular price
Sale price
$28.96
ex VAT
In stock
Price Break
10+
$13.68
19+
$12.91
29+
$12.76
39+
$12.60
49+
$12.45
74+
$12.30
99+
$11.53
199+
$11.37
249+
$11.22
499+
$11.07
999+
$10.76
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 13mm |
| Dynamic load | 8580 N |
| Static load | 12000 N |
| Fatigue load limit Pu | 1370 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| E | 20mm |
| F | 16mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 19.6mm |
| db | 15.7mm |
| Da | 20.3mm |
| Db | 16.4mm |
| ra max | 0.3mm |
| Weight | 30 g |
