SKU: NA4900.2RS-MB

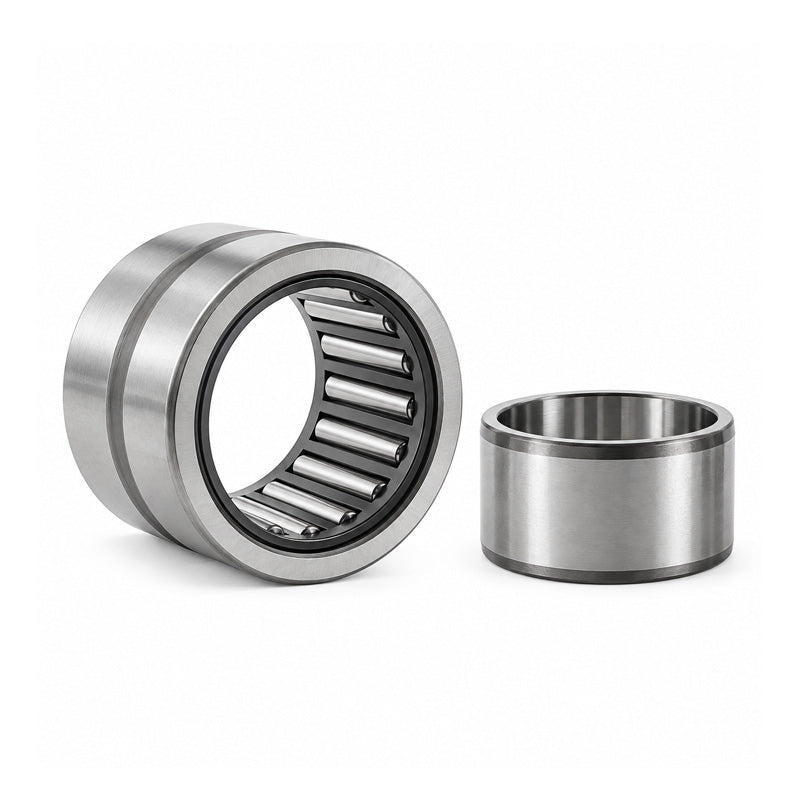

Major Brand NA49002RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 10x22x14mm
Major Brand NA49002RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 10x22x14mm
Regular price
$29.96
ex VAT
Regular price
Sale price
$29.96
ex VAT
In stock
Price Break
10+
$14.15
19+
$13.36
29+
$13.20
39+
$13.04
49+
$12.88
74+
$12.72
99+
$11.93
199+
$11.77
249+
$11.61
499+
$11.45
999+
$11.13
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 14mm |
| C | 13mm |
| Dynamic load | 7370 N |
| Static load | 8150 N |
| Fatigue load limit Pu | 950 N |
| Speed in grease | 13000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
