SKU: MTO-265X

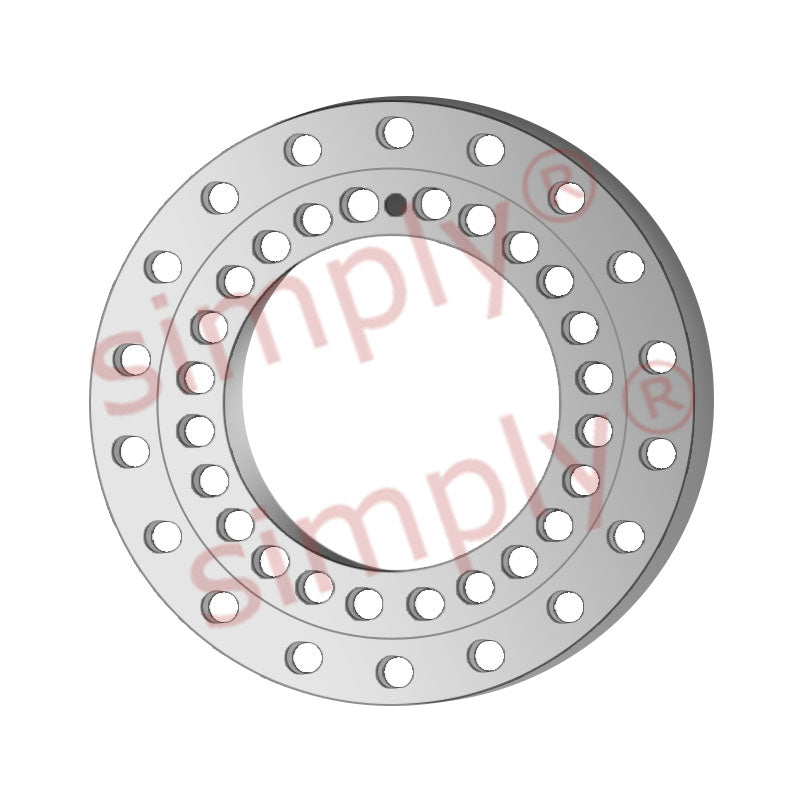

Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch

Name: Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch
Brand: Silverthin
SKU: MTO-265X
Price: 459.62 CAD
Availability: InStock

$459.62 ex VAT

Sale Sold out

Equivalent to: STO-265X

In stock

Price Break

3+ $217.07

4+ $204.88

9+ $202.44

19+ $200.00

29+ $197.56

39+ $195.12

49+ $182.93

59+ $180.49

249+ $178.05

499+ $175.61

999+ $170.73

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Silverthin Kaydon No Gear Slewing Ring: This slewing ring is a non-gear four-point contact bearing with a rectangular cross-section.
This slewing ring has clearance.

Equivalent: STO-265X

Brand / Quality:: Silverthin - High Quality
Inside Diameter:: 264.99mm = 10.433 inch
Outside Diameter:: 433.98mm = 17.086 inch
Width:: 49.98mm = 1.968 inch

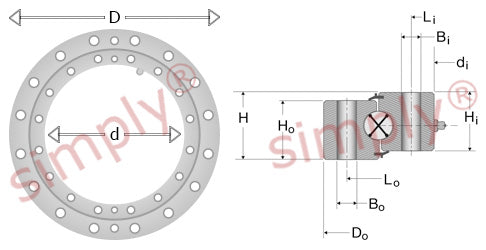

Technical

(di) Inner Diameter	10.433 inch
(Do) Outer Diameter	17.086 inch
(H) Full Width	1.968 inch
(Hii/Ho) Inner/Outer Ring Width	1.732 inch
(Li) Inner Ring	11.614 inch
(ni) No of Inner Ring Holes	24 holes
(Bi)	0.594 inch
(Lo) Outer Ring	15.354 inch
(no) No of Outer Ring Holes	18 holes
(B)	0.594 inch
(ft - lbs) Moment Rating	48670 inch
(kg) Weight	27.5kg
