SKU: MSC55-RHP

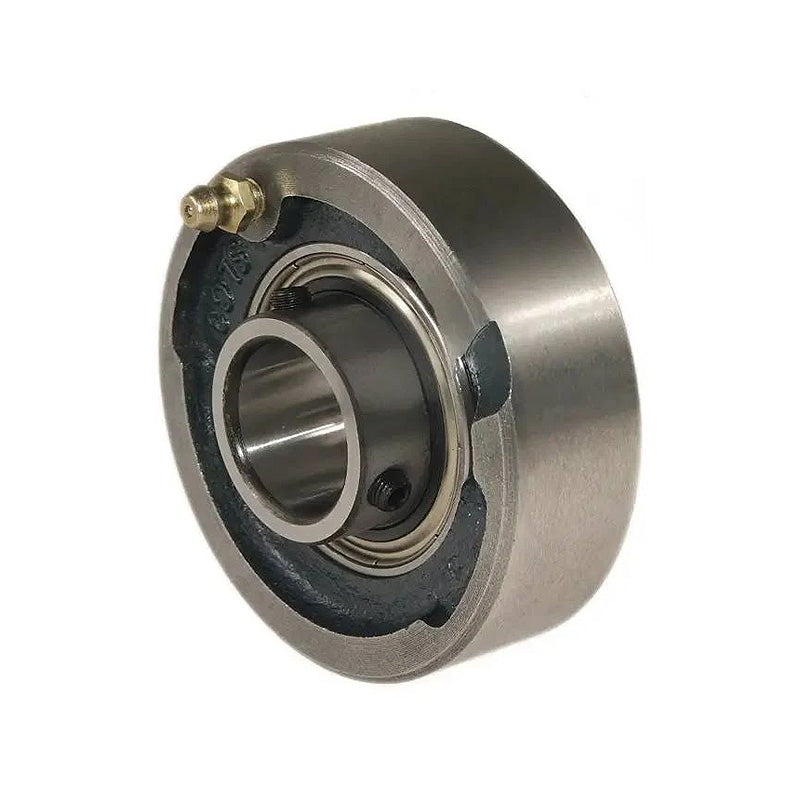

RHP MSC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
RHP MSC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
Regular price
$230.12
ex VAT
Regular price
Sale price
$230.12
ex VAT
In stock
Price Break
10+
$204.81
19+
$193.30
29+
$191.00
39+
$188.70
49+
$186.40
74+
$184.10
99+
$172.59
199+
$170.29
249+
$167.99
499+
$165.69
999+
$161.08
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 125.44mm
- Style:
- MSC
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 125.437mm |
| A | 40.48mm |
| A1 | 53.57mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81 |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rex max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
